BLOCKSF4-CD024-500-2 BLOCK Sine Filter SF4-CD024-500-2

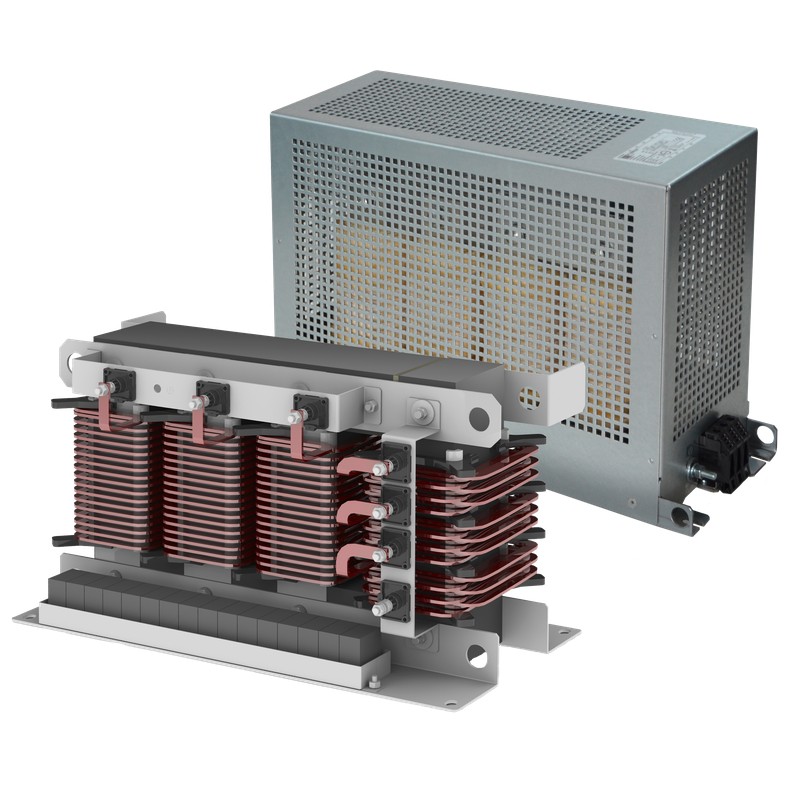

BLOCK SF4-CD024-500-2 SF4-CD024-500-2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SF4-CD024-500-2 BLOCK Sine Filter SF4-CD024-500-2

Reference: SF4-CD024-500-2

Manufacturer: BLOCK

Description:

Sine Filter SF4-CD024-500-2
All-pole sine filter

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 1.312,57 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›Efficiency optimisation of the drive system

›Use of unshielded motor cables

›Improves conducted and radiated electromagnetic interference (150 kHz - 300 MHz)

›Significant reduction of leakage currents

›Elimination of bearing currents

›Increase of motor service life

ProductAll-pole sine filter
Order numberSF4-CD024-500-2
SeriesSF4
Inductance3x 2 mH
Rated current3x 24 Aac
Linear current3x 55 Aac
Rated voltage range0 V to 500 V
Rated voltage500 V
Phases3
Frequency range5 Hz to 150 Hz
Switching frequency rangeto 16 kHz
EN Insulation classH (180°C)
UL Insulation classclass 180
Duty Cycle100 %
Power loss224.00 W
Wire materialCopper
General
Duty Cycle100 %
Cooling typeAN
Environment
Ambient temperature-10 °C to 45 °C / 14 °F to 113 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP XX B
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalScrew terminal
Output terminalScrew terminal
Terminal PEBolt connection
Size and Weight
Width450 mm / 17.72 in
Height270 mm / 10.63 in
Depth135 mm / 5.31 in
Weight25 kg / 55.116 lbs
