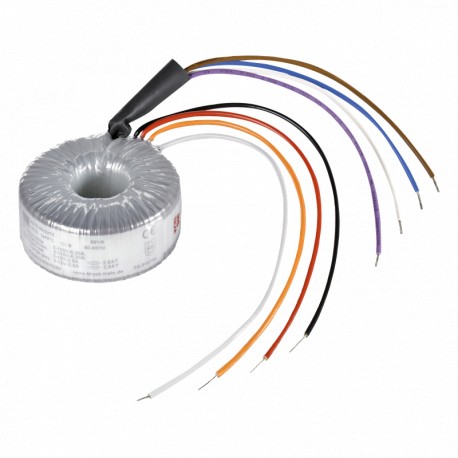

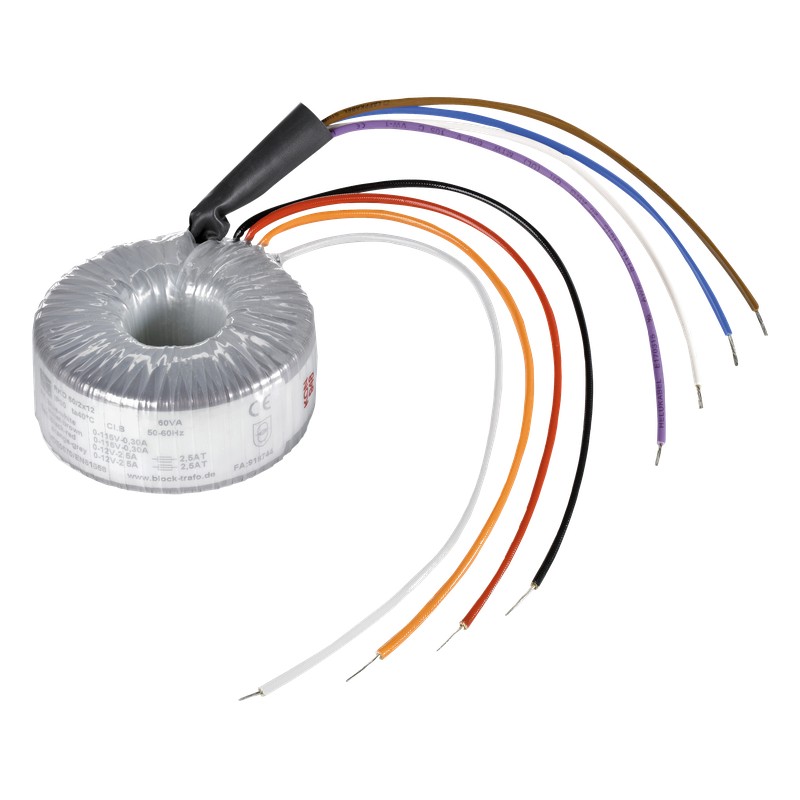

RKD 60/2x30 BLOCK Toroidal Transformers
RKD 60/2x30
BLOCK
Toroidal Transformers
Toroidal Transformers RKD 60/2x30
Toroidal transformers, isolating transformer
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲The toroidal transformers of the RKD series enable space-saving use due to minimal size with maximum performance. The low magnetic stray field does not affect surrounding components and ensures excellent temperature behavior. The connections can be soldered directly onto a PCB.
›Isolating transformer according to EN (IEC) 61558-2-4
›Lightweight
›Dual input and output coils for series or parallel connection
›Minimal no-load losses
›Very low noise field
| Product | Toroidal transformers, isolating transformer |
| Order number | RKD 60/2x30 |
| Series | RKD |
| Power | 60 VA |
| Input | 2 x 115 V |
| Output | 2 x 30 V • 1 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 9.7 W |
| No-Load Losses | 0.52 W |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 85.4 % |
General
| Short circuit proof | not short-circuit proof |
| Switching group | IIii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Stranded wire |
| Output terminal | Wire connection |
Size and Weight
| Width | 83 mm / 3.27 in |
| Height | 38 mm / 1.5 in |
| Depth | 83 mm / 3.27 in |
| Weight | 0.75 kg / 1.653 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| RKD 60/2x30 RKD 60/2x30 EN_RKD 60_2x30.pdf | 52 Kbytes |
|
