BLOCKPM-0624-100-0 BLOCK Redundancy Modules PM-0624-100-0

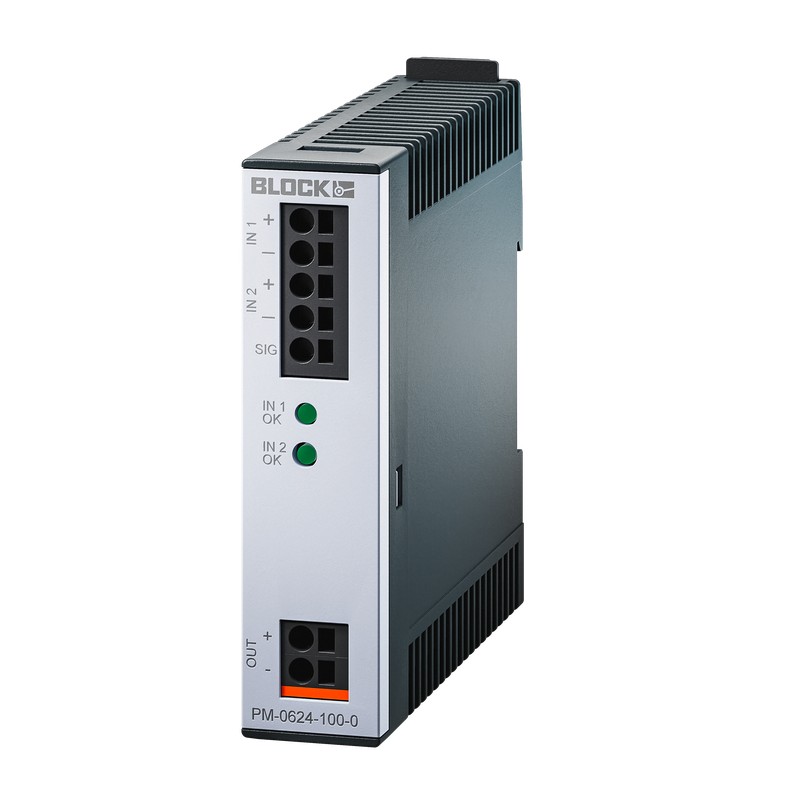

BLOCK PM-0624-100-0 PM-0624-100-0 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PM-0624-100-0 BLOCK Redundancy Modules PM-0624-100-0

Reference: PM-0624-100-0

Manufacturer: BLOCK

Description:

Redundancy Modules PM-0624-100-0
Redundancy module

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 70,24 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›High efficiency

›Error message via relay contact and LEDs

›Safe parallel operation to increase power

›Fully compatible with Top and Power Boost for your power supplies

›Active operation for minimal power loss even in the event of a short-circuit on the secondary side

›Decoupling with diodes

›3 years warranty

ProductRedundancy module
Order numberPM-0624-100-0
SeriesPM RE
Input
Rated input voltage24 Vdc
Input voltage range10 Vdc to 36 Vdc
Rated input current10 A
Output
Rated output voltage24 Vdc
Rated Output Current10 A
Output voltage range10 Vdc to 36 Vdc
Power boost120 A, 25 ms / 40 A, 4 s / 30 A, 16 s
Max. voltage drop between input and output750 mV
Max. power loss7.5 W
Max. feedback resistance37 Vdc
Parallel connection possibleJa
Signaling
Signal outputRelay contact
Status display2 x Green LED
Environment
Climate class according to EN 607213K3
Ambient temperature-40 °C to 70 °C / -40 °F to 158 °F
Storage temperature-40 °C to 85 °C / -40 °F to 185 °F
Humidity without condensation5 % to 96 %
Cooling typenatural convection
Required minimum distance (side)0 mm
Required minimum distance (top/bottom)30 mm
Protection and Safety
Degree of pollution2
Protection class according to EN 61140III, without PE connection
Safety extra low voltage (SELV/PELV)EN 60950 (SELV), EN 60204 (PELV)
Size and Weight
Width22 mm / 0.87 in
Height90 mm / 3.54 in
Depth94 mm / 3.7 in
Weight0.12 kg / 0.265 lbs

DATASHEET - PDF

Title
Size
Type
PM-0624-100-0 PM-0624-100-0 EN_PM-0624-100-0.pdf
198 Kbytes
PDF CATALOGUE BLOCK EN
62 Mbytes
