BLOCKPC-1024-050-0 BLOCK UPS Battery Modules

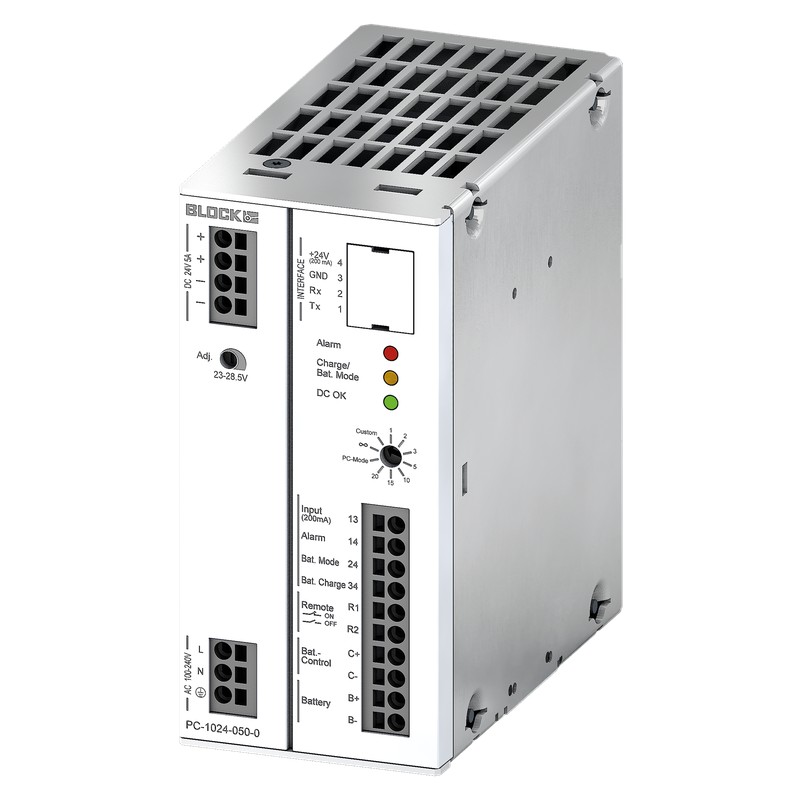

BLOCK PC-1024-050-0 PC-1024-050-0 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PC-1024-050-0 BLOCK UPS Battery Modules

Reference: PC-1024-050-0

Manufacturer: BLOCK

Description:

UPS - Battery Modules
UPS - Battery Modules PC-1024-050-0
Uninterruptible power supply

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 237,50 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›Combined power supply with charge and control unit

›Fast tripping of conventional circuit breakers

›Battery modules get detected automatically

›Reliable signalling when there is low remaining life expectancy of connected battery modules

›Extended life expectancy through temperature controlled battery management

›Reliable supply of industrial PC's

›3 years warranty

ProductUninterruptible power supply
Order numberPC-1024-050-0
SeriesCOMBI UPS
Input
Rated input voltage100 Vac to 240 Vac
Input voltage range85 Vac to 264 Vac
Input voltage range120 Vdc to 372 Vdc
Rated input current (rated load) (100Vac)1.96 A
Rated input current (rated load) (230Vac)0.95 A
Switch-on time (230Vac)0.20 s
Inrush current limitation NTC <30 A
Output
Power120 W
Rated output voltage24 Vdc
Rated Output Current5 A
Output voltage range24 Vdc
Output Current Limitation (Constant Current) typ.6.5 A
Ripple (rated load) typ.50 mVss
Max. feedback resistance35 Vdc
Überspannungsschutz des Ausgangs38.0 Vdc
Parallel connection possibleOnly with redundancy module, max. 5 A output current
Series connection possibleYes
Signaling
Status displayGreen, yellow, red LED
Environment
Ambient temperature-25 °C to 70 °C / -13 °F to 158 °F
Storage temperature-25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation5 % to 96 %
Cooling typenatural convection
Required minimum distance (side)0 mm
Required minimum distance (top/bottom)50 mm
Size and Weight
Width60 mm / 2.36 in
Height127 mm / 5 in
Depth136 mm / 5.35 in
Weight0.8 kg / 1.764 lbs
