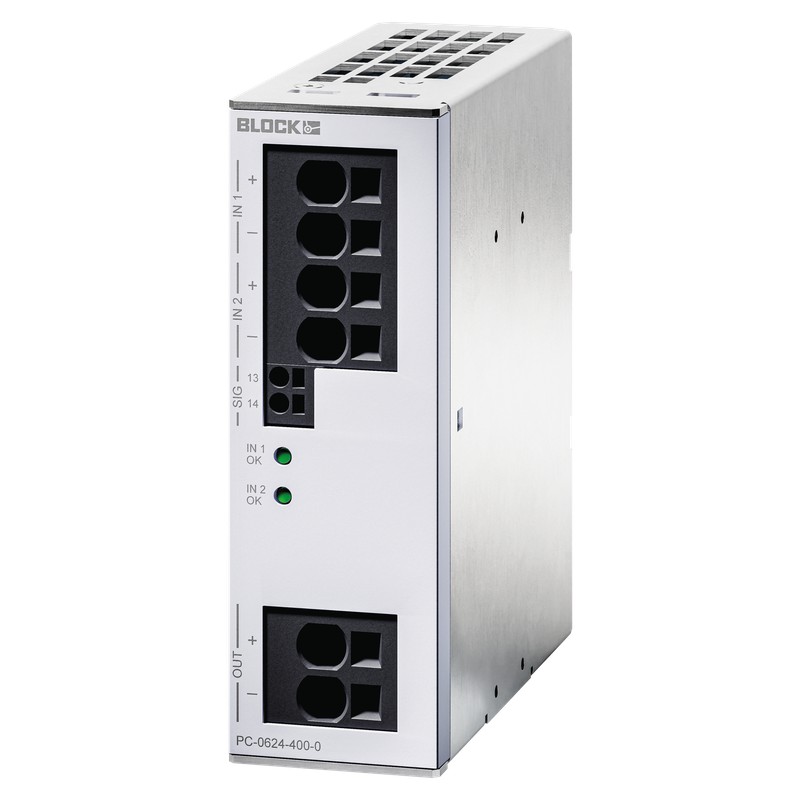

PC-0624-400-0 BLOCK Redundancy Modules
PC-0624-400-0
BLOCK
Redundancy Modules
Redundancy Modules PC-0624-400-0
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›High efficiency
›Error message via relay contact and LEDs
›Safe parallel operation to increase power
›Fully compatible with Top and Power Boost for your power supplies
›Active operation for minimal power loss even in the event of a short-circuit on the secondary side
›Based on Mosfet technology
›3 years warranty
| Product | Redundancy module |
| Order number | PC-0624-400-0 |
| Series | PC RE |
Input
| Rated input voltage | 24 Vdc |
| Input voltage range | 10 Vdc to 36 Vdc |
| Rated input current | 40 A |
Output
| Rated output voltage | 24 Vdc |
| Rated Output Current | 40 A |
| Output voltage range | 10 Vdc to 36 Vdc |
| Power boost | 200 A, 50 ms / 120 A, 4 s / 100 A, 8 s |
| Max. voltage drop between input and output | 100 mV |
| Max. power loss | 9.5 W |
| Max. feedback resistance | 37 Vdc |
| Parallel connection possible | Ja |
Signaling
| Signal output | Relay contact |
| Status display | 2 x Green LED |
Environment
| Climate class according to EN 60721 | 3K3 |
| Ambient temperature | -40 °C to 70 °C / -40 °F to 158 °F |
| Storage temperature | -40 °C to 85 °C / -40 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
| Required minimum distance (side) | 0 mm |
| Required minimum distance (top/bottom) | 30 mm |
Protection and Safety
| Degree of pollution | 2 |
| Protection class according to EN 61140 | III, without PE connection |
| Safety extra low voltage (SELV/PELV) | EN 60950 (SELV), EN 60204 (PELV) |
Size and Weight
| Width | 42 mm / 1.65 in |
| Height | 127 mm / 5 in |
| Depth | 112.5 mm / 4.43 in |
| Weight | 0.42 kg / 0.926 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| Download general catalog |
|
