BLOCKPC-0424-115-0 BLOCK UPS Battery Modules PC-0424-115-0

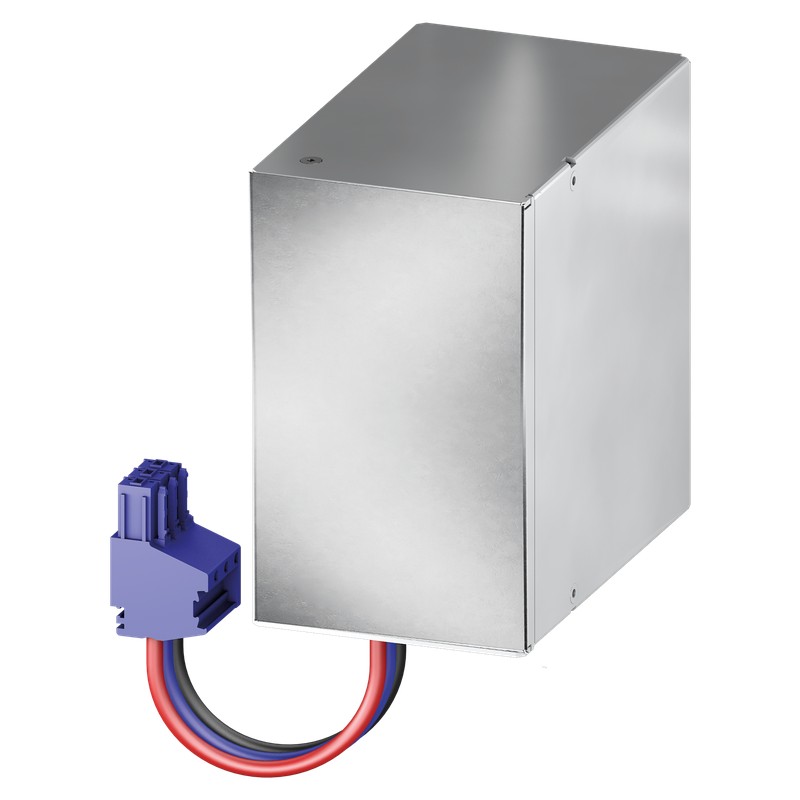

BLOCK PC-0424-115-0 PC-0424-115-0 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PC-0424-115-0 BLOCK UPS Battery Modules PC-0424-115-0

Reference: PC-0424-115-0

Manufacturer: BLOCK

Description:

UPS - Battery Modules PC-0424-115-0
Capacity module

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 309,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›Extension of the buffer time of PC-0424-017-0

›Communication through system bus cable

›Automatic addressing

›Very long buffer times achievable

›3 years warranty

ProductCapacity module
Order numberPC-0424-115-0
SeriesCAP UPS
Input
Rated input voltage24 Vdc
Input voltage range24 Vdc
Output
Rated output voltage24 Vdc
Rated Output Current40 A
Output voltage range22 Vdc to 28 Vdc
Rated capacity11500 Ws
Parallel connection possibleYes
Signaling
CommunicationSystem bus
Environment
Ambient temperature-25 °C to 70 °C / -13 °F to 158 °F
Storage temperature-25 °C to 70 °C / -13 °F to 158 °F
Required minimum distance (side)0 mm
Required minimum distance (top/bottom)40 mm
Protection and Safety
Degree of pollution2
Protection class according to EN 61140III
Size and Weight
Width77 mm / 3.03 in
Height127 mm / 5 in
Depth139 mm / 5.47 in
Weight1.73 kg / 3.814 lbs
