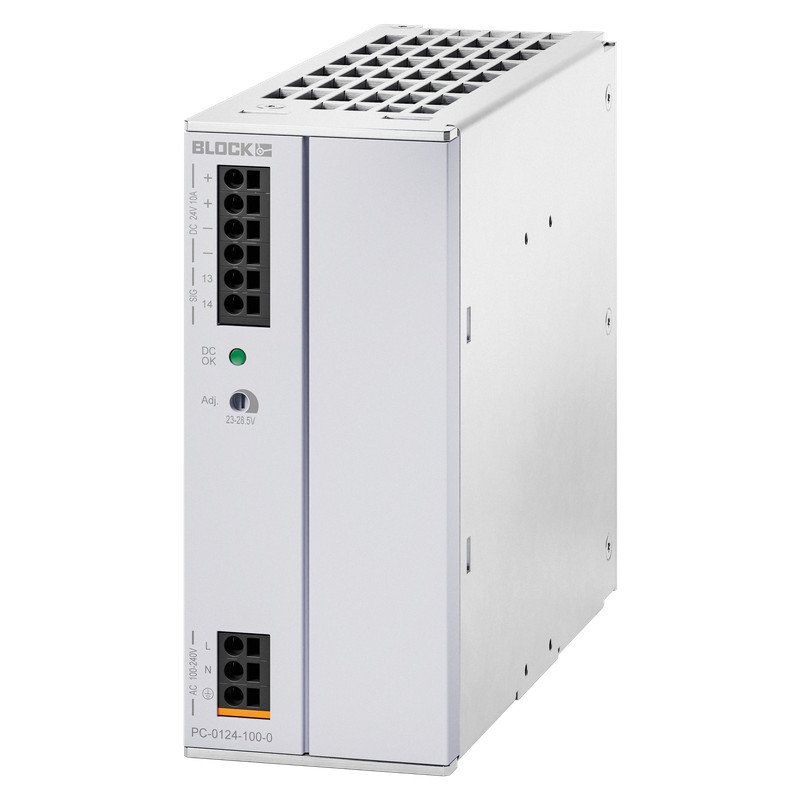

PC-0124-100-0 PC01241000 BLOCK Primary switched mode power supply, PC 1AC

Input rated voltage

100 - 240 Vac

Input Voltage range

85 - 264 Vac
(120 - 372 Vdc)

Input voltage derating

‑2.5 %/Vac < 100 Vac

Rated frequency range

44 Hz - 66 Hz / 0 Hz

Input rated current (rated load)

2.07 A (100 Vac) / 0,95 A (230 Vac)

Starting current limiter

< 30 A, NTC (active)

Switch‑on time

0.71 s (100 Vac) / 0.43 s (230 Vac)

Mains buffering (rated load)

28 ms (100 Vac) / 28 ms (230 Vac)

Power factor

0.91 (active PFC)

Input fuse internal

6.3 A

Recommended back‑up fuse (circuit breaker)

10 A, 16 A,
characteristic B, C

Transient surge voltage protection

Varistor

Output rated voltage

12 Vdc

Output Voltage range

11.5 – 15 Vdc

Output rated current

15 A

Output limited current

typ. 16.5 A (constant current)

Tripping of LS circuit breakers

max. B4

Parallel connection

Yes

Serial operation

Yes

Power dissipation, no load/rated load

4.4 W / 21.8 W (230 Vac)

Max. power losses

24.7 W (100 Vac / 12 V / 15 A)

Efficiency

typ. 90 %

Ripple factor

typ. 35 mVss

Resistance to reverse feed max.

35 Vdc

Over‑voltage‑protection

max. 20 Vdc

Typ. switching threshold for LED and signal output (DC OK)

‑

Status indicator

LED green

Signal output

Relay contact

Approvals

cURus, cULus, GL

Type of cooling

natural convection

Ambient temperature

-25 °C to +70 °C

Storage temperature

-25 °C to +85 °C

Derating

-5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac

Required minimum spacing (left/right)

0 mm

Required minimum spacing (over/under)

50 mm

Mounting position

horizontal for standard rail DIN TS35

MTBF in acc. IEC 61709 (SN 29500)

> 500 000 h

Protection index

IP 20

Safety class

I, with PE connection

Terminals signalling (direct plug‑in technology Push‑in)

max 2,5 mm²

Terminals input (direct plug‑in technology Push‑in)

max 2,5 mm²

Terminals output (direct plug‑in technology Push‑in)

max 2,5 mm²

Weight

0.93 kg

Dimension (W x H x D)

55 x 127 x 161 mm
