BLOCKNKE 40/1,28 BLOCK Line Reactor NKE 40/1,28

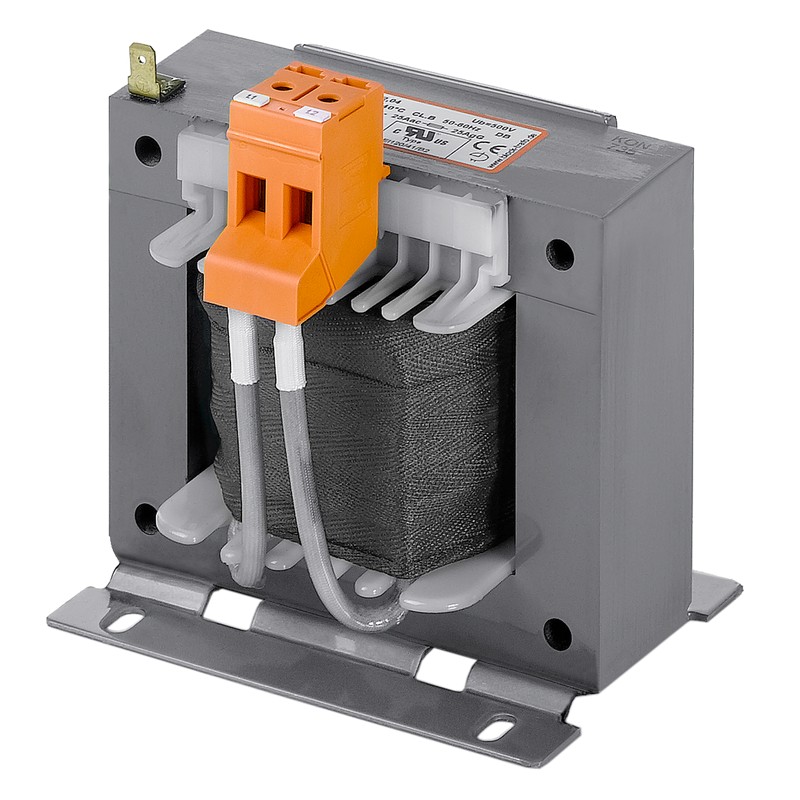

BLOCK NKE 40/1,28 NKE 40/1,28 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

NKE 40/1,28 BLOCK Line Reactor NKE 40/1,28

Reference: NKE 40/1,28

Manufacturer: BLOCK

Description:

Line Reactor NKE 40/1,28
Line reactor

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 117,15 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

›Use as line reactor, commutating reactor or PFC reactor

›Power harmonic damping

›Starting current limitation

›Increases the service life of consumers

›Low ripple

›Very good corrosion protection and low noise thanks to vacuum impregnation

›Bridging voltage dips

›Peak current limitation

ProductLine reactor
Order numberNKE 40/1,28
SeriesNKE
Inductance1.28 mH
Rated current40 Aac
Linear current60 Aac
Rated voltage range0 V to 400 V
Rated voltage400 V
Phases1
Frequency range50 Hz to 60 Hz
Short circuit voltage4% @ 400 V
Motor or converter power12.8 kW / 17.17 HP
EN Insulation classB (130°C)
UL Insulation classclass 130
Power loss34.10 W
Wire materialCopper
General
Cooling typeAN
Switching groupI0
Environment
Ambient temperature-10 °C to 40 °C / 14 °F to 104 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP00
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalScrew terminal
Output terminalScrew terminal
Terminal PEPlug-in connection
Size and Weight
Width120 mm / 4.72 in
Height130 mm / 5.12 in
Depth110 mm / 4.33 in
Weight4.2 kg / 9.259 lbs
