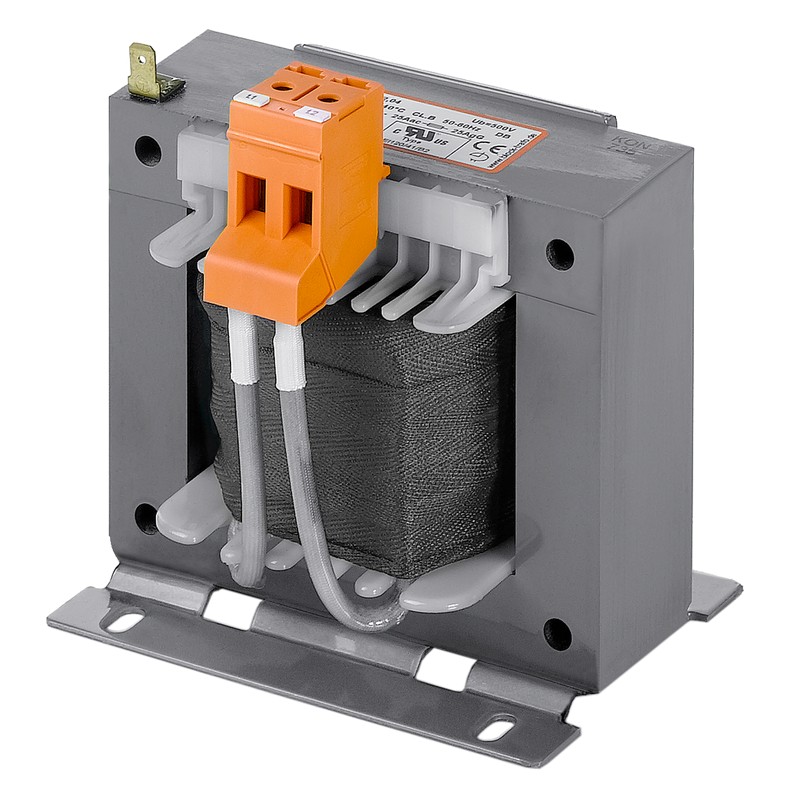

NKE 40/0,73 BLOCK Line Reactor NKE 40/0,73
NKE 40/0,73
BLOCK
Line Reactor NKE 40/0,73
Line reactor
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Use as line reactor, commutating reactor or PFC reactor
›Power harmonic damping
›Starting current limitation
›Increases the service life of consumers
›Low ripple
›Very good corrosion protection and low noise thanks to vacuum impregnation
›Bridging voltage dips
›Peak current limitation
| Product | Line reactor |
| Order number | NKE 40/0,73 |
| Series | NKE |
| Inductance | 0.73 mH |
| Rated current | 40 Aac |
| Linear current | 60 Aac |
| Rated voltage range | 0 V to 230 V |
| Rated voltage | 230 V |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| Short circuit voltage | 4% @ 230 V |
| Motor or converter power | 7.4 kW / 9.92 HP |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 130 |
| Power loss | 17.60 W |
| Wire material | Copper |
General
| Cooling type | AN |
| Switching group | I0 |
Environment
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Plug-in connection |
Size and Weight
| Width | 120 mm / 4.72 in |
| Height | 130 mm / 5.12 in |
| Depth | 110 mm / 4.33 in |
| Weight | 3.77 kg / 8.311 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| NKE 40/0,73 NKE 40/0,73 EN_NKE 100_0,29.pdf | 958 Kbytes |
|
