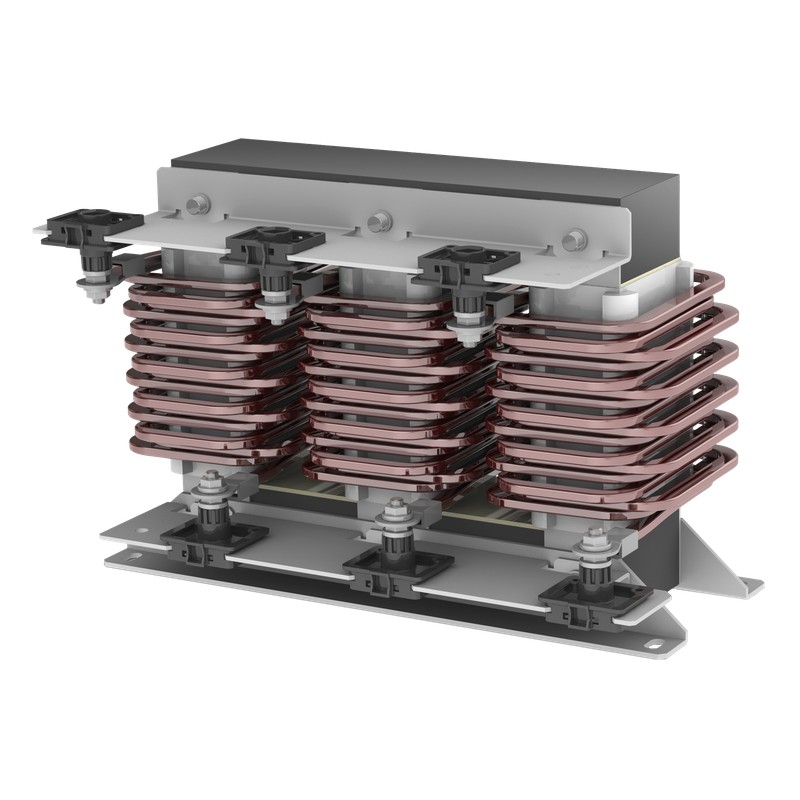

LR3-AE080-485-0 BLOCK Line Reactor LR3-AE080-485-0
LR3-AE080-485-0
BLOCK
Line Reactor LR3-AE080-485-0
Line reactor, three-phase
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Use as line reactor, commutating reactor or PFC reactor
›Ensuring the short-circuit voltage of 5% to the mains
›Power harmonic damping
›Starting current limitation
›Increases the service life of consumers
›Low ripple
›Bridging voltage dips
›Peak current limitation
›Very good corrosion protection and low noise due to vacuum impregnation
›AD and AE types with UL approval
| Product | Line reactor, three-phase |
| Order number | LR3-AE080-485-0 |
| Series | LR3-A |
| Inductance | 3x 0.45 mH |
| Rated current | 3x 80 Aac |
| Linear current | 3x 120 Aac |
| Rated voltage range | 0 V to 690 V |
| Rated voltage | 480 V |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| Short circuit voltage | 5% @ 480 V |
| Motor or converter power | 45 kW / 60.35 HP |
| EN Insulation class | H (180°C) |
| UL Insulation class | class 180 |
| Duty Cycle | 100 % |
| Power loss | 171.00 W |
| Wire material | Aluminum |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
| Switching group | III0 |
Environment
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Bolt connection |
| Output terminal | Bolt connection |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 300 mm / 11.81 in |
| Height | 208.5 mm / 8.21 in |
| Depth | 159.5 mm / 6.28 in |
| Weight | 15.2 kg / 33.51 lbs |
