BLOCKLR3-AE080-483-0 BLOCK Line Reactor LR3-AE080-483-0

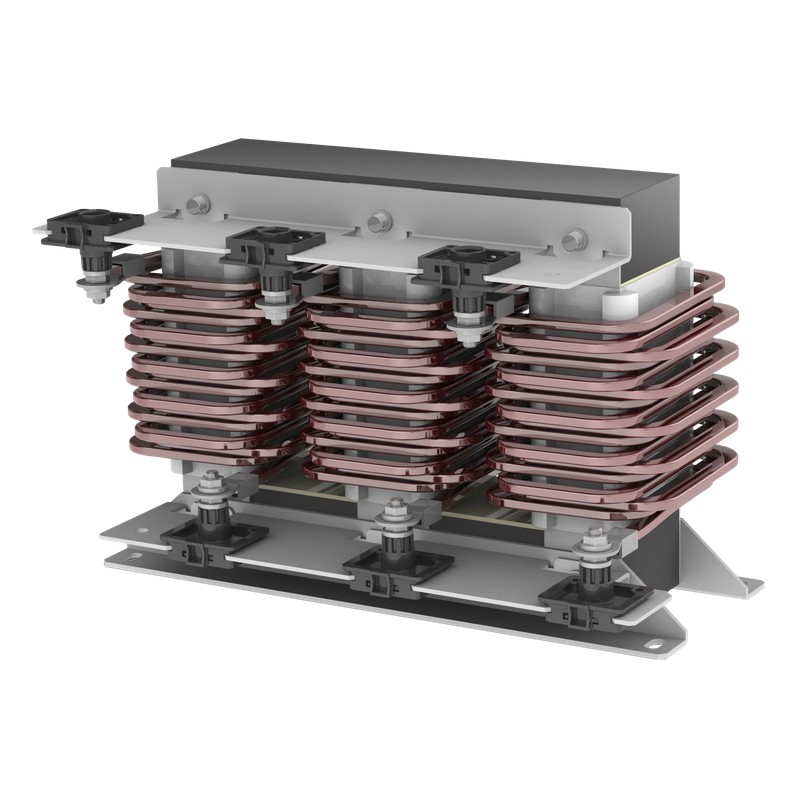

BLOCK LR3-AE080-483-0 LR3-AE080-483-0 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LR3-AE080-483-0 BLOCK Line Reactor LR3-AE080-483-0

Reference: LR3-AE080-483-0

Manufacturer: BLOCK

Description:

Line Reactor LR3-AE080-483-0
Line reactor, three-phase

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 273,43 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›Use as line reactor, commutating reactor or PFC reactor

›Ensuring the short-circuit voltage of 4 % to the mains

›Power harmonic damping

›Starting current limitation

›Increases the service life of consumers

›Low ripple

›Bridging voltage dips

›Peak current limitation

›Very good corrosion protection and low noise due to vacuum impregnation

›AD and AE types with UL approval

ProductLine reactor, three-phase
Order numberLR3-AE080-483-0
SeriesLR3-A
Inductance3x 0.27 mH
Rated current3x 80 Aac
Linear current3x 120 Aac
Rated voltage range0 V to 690 V
Rated voltage480 V
Phases3
Frequency range50 Hz to 60 Hz
Short circuit voltage3% @ 480 V
Motor or converter power45 kW / 60.35 HP
EN Insulation classH (180°C)
UL Insulation classclass 180
Duty Cycle100 %
Power loss164.00 W
Wire materialAluminum
General
Duty Cycle100 %
Cooling typeAN
Switching groupIII0
Environment
Ambient temperature-10 °C to 40 °C / 14 °F to 104 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP00
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalBolt connection
Output terminalBolt connection
Terminal PEBolt connection
Size and Weight
Width300 mm / 11.81 in
Height142 mm / 5.59 in
Depth209.5 mm / 8.25 in
Weight11 kg / 24.251 lbs

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE BLOCK EN
62 Mbytes
