BLOCKLR3 40-3/90 BLOCK Line Reactor

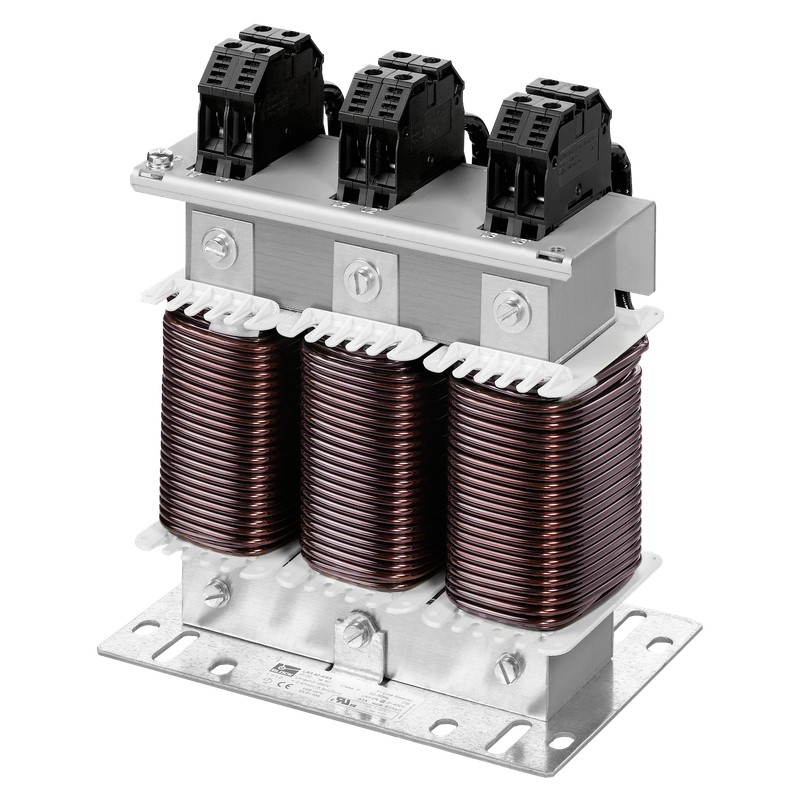

BLOCK LR3 40-3/90 LR3 40-3/90 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

LR3 40-3/90 BLOCK Line Reactor

Reference: LR3 40-3/90

Manufacturer: BLOCK

Description:

Line Reactor
Line Reactor LR3 40-3/90
Line reactor, three-phase

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 469,93 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›Ensuring the short-circuit voltage of 3 - 5 % to the mains

›Power harmonic damping

›Starting current limitation

›Increases the service life of consumers

›Low ripple

›Bridging voltage dips

›Peak current limitation

›Integrated lifting rings

›Multifunctional fixing rails

›Use as line reactor, commutating reactor or PFC reactor

›Very good corrosion protection and low noise due to vacuum impregnation

ProductLine reactor, three-phase
Order numberLR3 40-3/90
SeriesLR3
Inductance3x 0.245 mH
Rated current3x 90 Aac
Linear current3x 135 Aac
Rated voltage range0 V to 690 V
Rated voltage400 V
Phases3
Frequency range50 Hz to 60 Hz
Short circuit voltage3% @ 400 V
Motor or converter power55 kW / 73.76 HP
EN Insulation classF (155°C)
UL Insulation classclass 155
Duty Cycle100 %
Power loss147.00 W
Wire materialCopper
General
Duty Cycle100 %
Cooling typeAN
Switching groupIII0
Environment
Ambient temperature-10 °C to 40 °C / 14 °F to 104 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP00
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalFlat copper connection
Output terminalFlat copper connection
Terminal PEBolt connection
Size and Weight
Width210 mm / 8.27 in
Height180 mm / 7.09 in
Depth105 mm / 4.13 in
Weight13.1 kg / 28.881 lbs

DATASHEET - PDF

Title
Size
Type
LR3 40-3/90 LR3 40-3/90 EN_LR3 40-3_90.pdf
343 Kbytes
PDF CATALOGUE BLOCK EN
62 Mbytes
