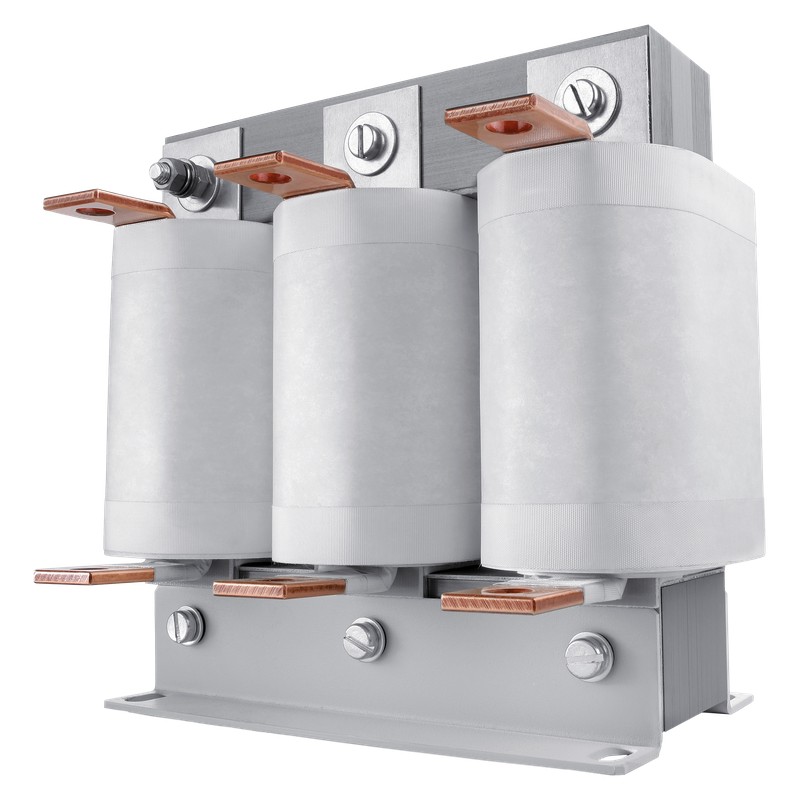

LR3 40-3/180 BLOCK Line Reactor
LR3 40-3/180
BLOCK
Line Reactor
Line Reactor LR3 40-3/180
Line reactor, three-phase
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Ensuring the short-circuit voltage of 3 - 5 % to the mains
›Power harmonic damping
›Starting current limitation
›Increases the service life of consumers
›Low ripple
›Bridging voltage dips
›Peak current limitation
›Integrated lifting rings
›Multifunctional fixing rails
›Use as line reactor, commutating reactor or PFC reactor
›Very good corrosion protection and low noise due to vacuum impregnation
| Product | Line reactor, three-phase |
| Order number | LR3 40-3/180 |
| Series | LR3 |
| Inductance | 3x 0.123 mH |
| Rated current | 3x 180 Aac |
| Linear current | 3x 270 Aac |
| Rated voltage range | 0 V to 690 V |
| Rated voltage | 400 V |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| Short circuit voltage | 3% @ 400 V |
| Motor or converter power | 110 kW / 147.51 HP |
| EN Insulation class | H (180°C) |
| UL Insulation class | class 180 |
| Duty Cycle | 100 % |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
| Switching group | III0 |
Environment
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Flat copper connection |
| Output terminal | Flat copper connection |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 291 mm / 11.46 in |
| Height | 208 mm / 8.19 in |
| Depth | 149 mm / 5.87 in |
| Weight | 27.73 kg / 61.134 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| LR3 40-3/180 LR3 40-3/180 EN_LR3 40-3_180.pdf | 343 Kbytes |
|
| Download general catalog |
|
