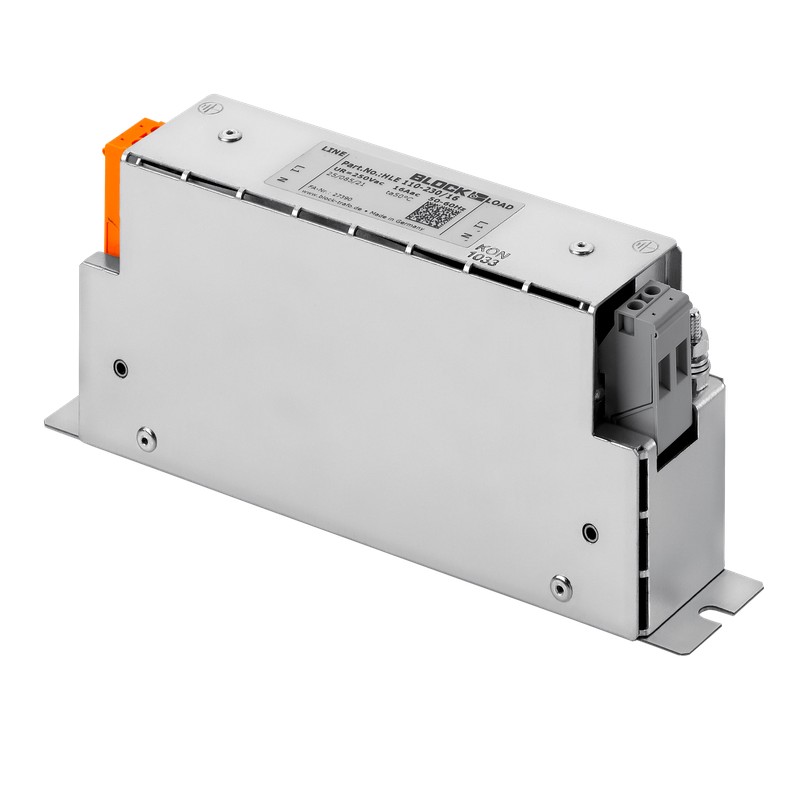

HLE 110-230/8 BLOCK EMI Filter
HLE 110-230/8
BLOCK
EMI Filter
EMI Filter HLE 110-230/8
Radio interference suppression filter
electrical stabilizers filters
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›For enhanced requirements
›Single-stage filter concept
›Efficient filter effect against line-bound interference emissions
›Increase in the interference immunity of the connected consumer
| Product | Radio interference suppression filter |
| Order number | HLE 110-230/8 |
| Series | HLE 110 |
| Inductance | 8.07 mH |
| Rated current | 8 Aac |
| Rated voltage range | 0 V to 250 V |
| Rated voltage | 230 V |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| Motor or converter power | 0.8 kW / 1.07 HP |
| EN Insulation class | A (105°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Power loss | 6.80 W |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
Environment
| Ambient temperature | -25 °C to 50 °C / -13 °F to 122 °F |
Protection and Safety
| Protection type | IP20 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 38 mm / 1.5 in |
| Height | 75 mm / 2.95 in |
| Depth | 160 mm / 6.3 in |
| Weight | 0.58 kg / 1.279 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| BLOCK-HLE1102308-HLE 110-230/8 | 927 Kbytes |
|
| Download general catalog |
|
