BLOCKelectrical stabilizers filtersHLD 710-500/75 BLOCK EMI Filter

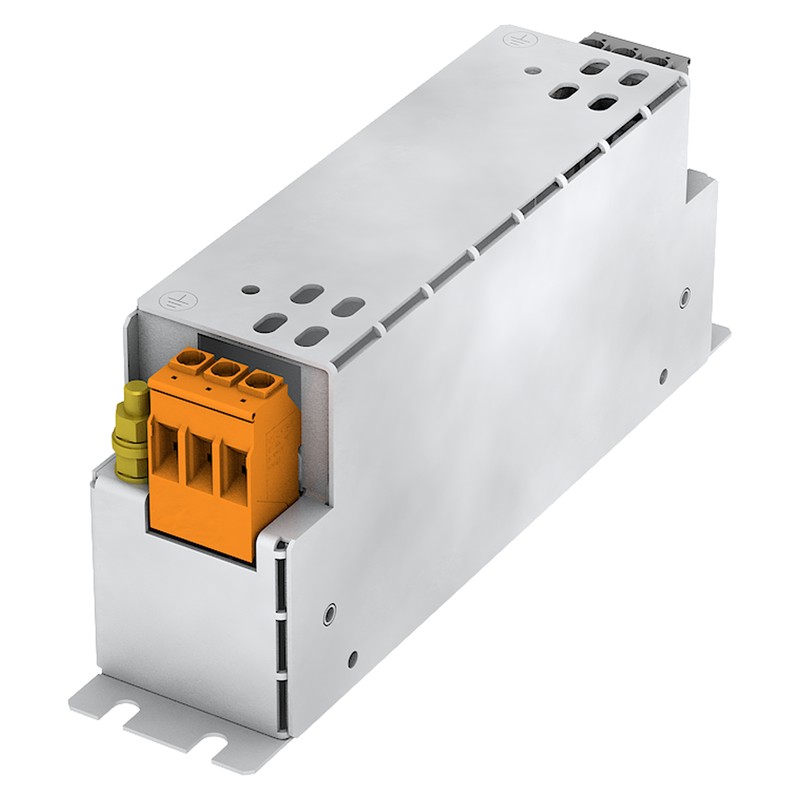

BLOCK HLD 710-500/75 HLD 710-500/75 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HLD 710-500/75 BLOCK EMI Filter

Reference: HLD 710-500/75

Manufacturer: BLOCK

Description:

EMI Filter
EMI Filter HLD 710-500/75
Radio interference suppression filter, low leakage current, three-phase

Categories:

  • BLOCK > electrical stabilizers filters

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 286,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

›For enhanced requirements

›Reduced leakage current

›Single-stage filter concept

›Efficient filter effect against line-bound interference emissions

›Increase in the interference immunity of the connected consumer

ProductRadio interference suppression filter, low leakage current, three-phase
Order numberHLD 710-500/75
SeriesHLD 710
Inductance3x 1.3 mH
Rated current3x 75 Aac
Rated voltage range0 V to 528 V
Rated voltage480 V
Phases3
Frequency range50 Hz to 60 Hz
Motor or converter power37 kW / 49.62 HP
EN Insulation classA (105°C)
UL Insulation classclass 105
Duty Cycle100 %
Power loss35.00 W
Wire materialCopper
General
Duty Cycle100 %
Cooling typeAN
Environment
Ambient temperature-25 °C to 50 °C / -13 °F to 122 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP20
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalScrew terminal
Output terminalScrew terminal
Terminal PEBolt connection
Size and Weight
Width85 mm / 3.35 in
Height135 mm / 5.31 in
Depth270 mm / 10.63 in
Weight3.98 kg / 8.774 lbs

DATASHEET - PDF

Title
Size
Type
BLOCK-HLD71050075-HLD 710-500/75
958 Kbytes
PDF CATALOGUE BLOCK EN
62 Mbytes
