BLOCKelectrical stabilizers filtersHFD 500/80 BLOCK EMI Filter

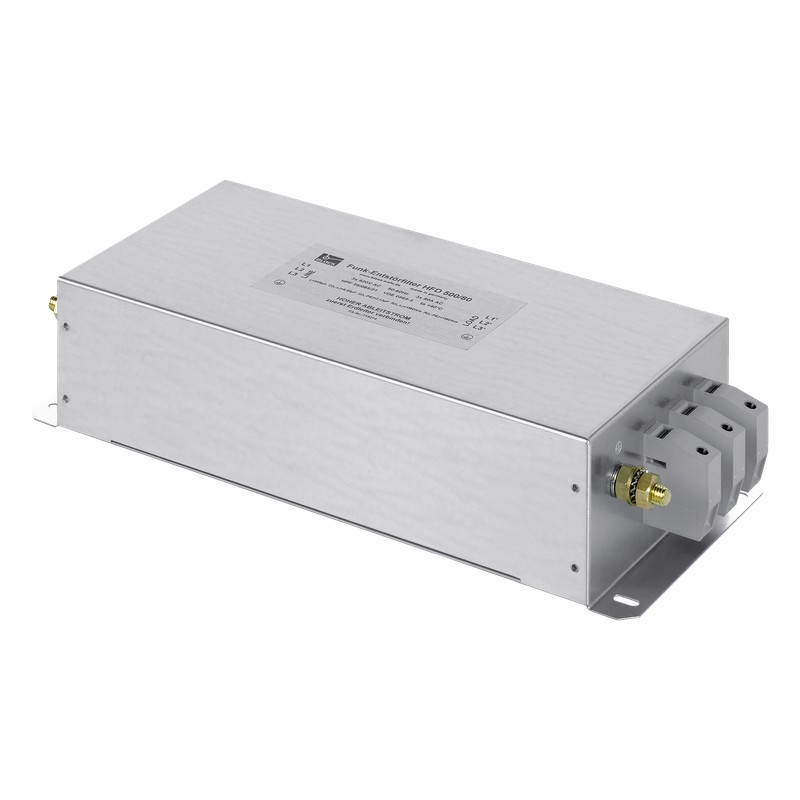

BLOCK HFD 500/80 HFD 500/80 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HFD 500/80 BLOCK EMI Filter

Reference: HFD 500/80

Manufacturer: BLOCK

Description:

EMI Filter
EMI Filter HFD 500/80
Radio interference suppression filter, three-phase

Categories:

  • BLOCK > electrical stabilizers filters

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 741,86 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

›For general requirements

›Single-stage filter concept

›Efficient filter effect against line-bound interference emissions

›Increase in the interference immunity of the connected consumer

ProductRadio interference suppression filter, three-phase
Order numberHFD 500/80
SeriesHFD 500
Inductance3x 0.81 mH
Rated current3x 80 Aac
Rated voltage range0 V to 520 V
Rated voltage480 V
Phases3
Frequency range50 Hz to 60 Hz
EN Insulation classA (105°C)
Duty Cycle100 %
Wire materialCopper
General
Duty Cycle100 %
Cooling typeAN
Environment
Ambient temperature-25 °C to 40 °C / -13 °F to 104 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP20
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalScrew terminal
Output terminalScrew terminal
Terminal PEBolt connection
Size and Weight
Width170 mm / 6.69 in
Height90 mm / 3.54 in
Depth427 mm / 16.81 in
Weight9.045 kg / 19.941 lbs

DATASHEET - PDF

Title
Size
Type
HFD 500/80 HFD 500/80 EN_HFD 500_110.pdf
925 Kbytes
PDF CATALOGUE BLOCK EN
62 Mbytes
