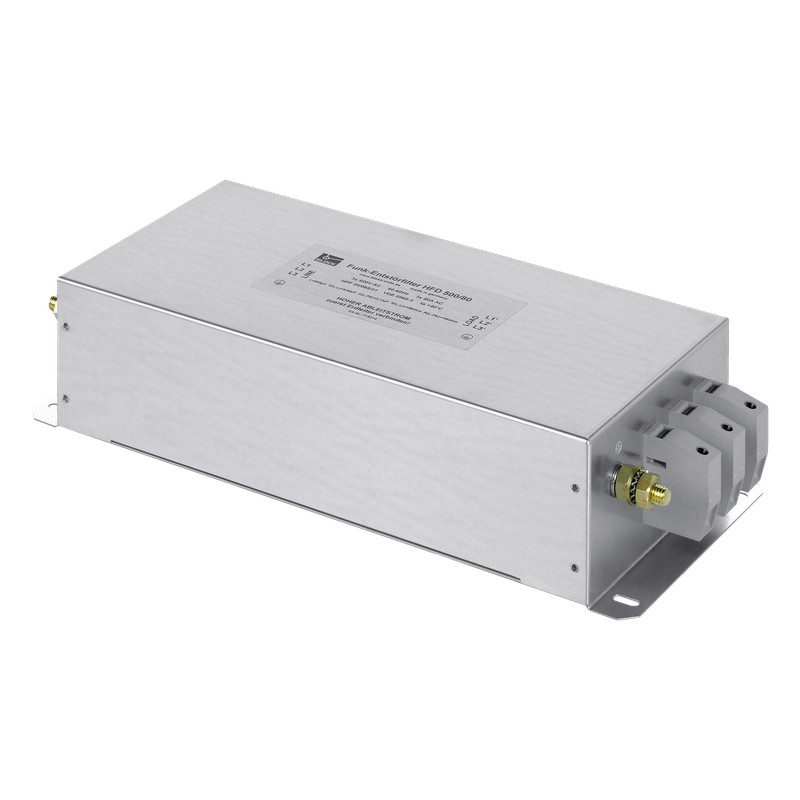

HFD 500/16 BLOCK EMI Filter
HFD 500/16
BLOCK
EMI Filter
EMI Filter HFD 500/16
Radio interference suppression filter, three-phase
electrical stabilizers filters
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›For general requirements
›Single-stage filter concept
›Efficient filter effect against line-bound interference emissions
›Increase in the interference immunity of the connected consumer
| Product | Radio interference suppression filter, three-phase |
| Order number | HFD 500/16 |
| Series | HFD 500 |
| Inductance | 3x 7.3 mH |
| Rated current | 3x 16 Aac |
| Rated voltage range | 0 V to 520 V |
| Rated voltage | 480 V |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | A (105°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
Environment
| Ambient temperature | -25 °C to 40 °C / -13 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP20 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 150 mm / 5.91 in |
| Height | 65 mm / 2.56 in |
| Depth | 239 mm / 9.41 in |
| Weight | 3.1 kg / 6.834 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| HFD 500/16 HFD 500/16 EN_HFD 500_110.pdf | 925 Kbytes |
|
