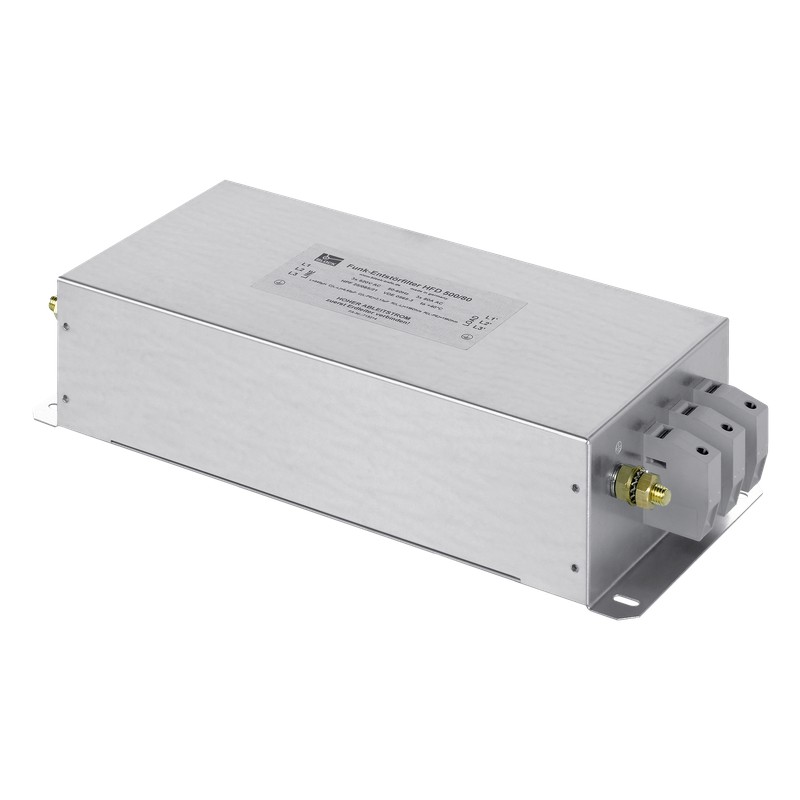

HFD 500/110 BLOCK EMI Filter
HFD 500/110
BLOCK
EMI Filter
EMI Filter HFD 500/110
Radio interference suppression filter, three-phase
electrical stabilizers filters
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›For general requirements
›Single-stage filter concept
›Efficient filter effect against line-bound interference emissions
›Increase in the interference immunity of the connected consumer
| Product | Radio interference suppression filter, three-phase |
| Order number | HFD 500/110 |
| Series | HFD 500 |
| Inductance | 3x 0.55 mH |
| Rated current | 3x 110 Aac |
| Rated voltage range | 0 V to 520 V |
| Rated voltage | 480 V |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| EN Insulation class | A (105°C) |
| Duty Cycle | 100 % |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
Environment
| Ambient temperature | -25 °C to 40 °C / -13 °F to 104 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP20 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 170 mm / 6.69 in |
| Height | 100 mm / 3.94 in |
| Depth | 436 mm / 17.17 in |
| Weight | 10.139 kg / 22.353 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| HFD 500/110 HFD 500/110 EN_HFD 500_110.pdf | 925 Kbytes |
|
