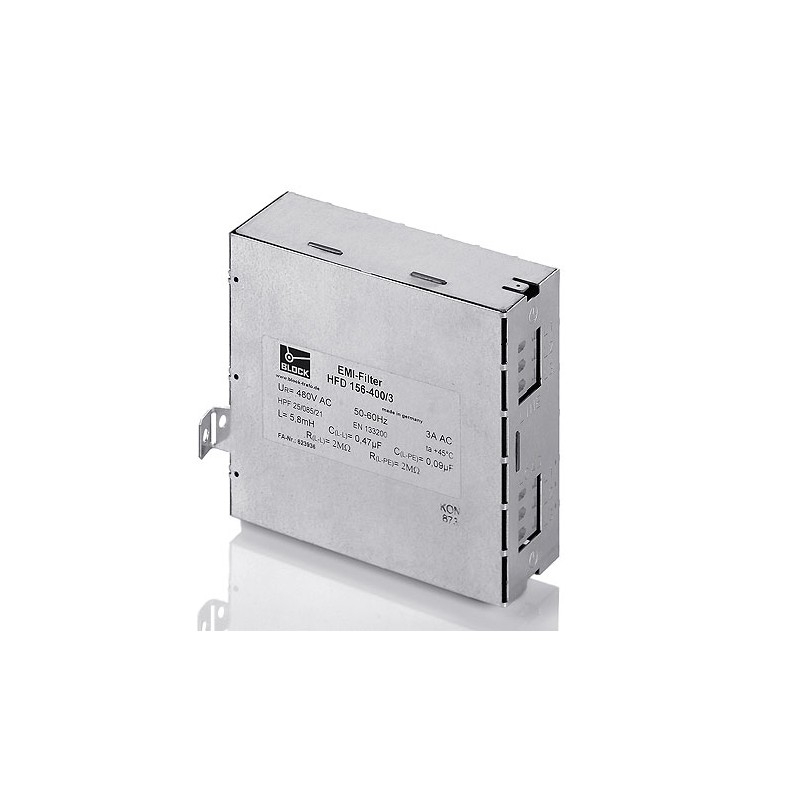

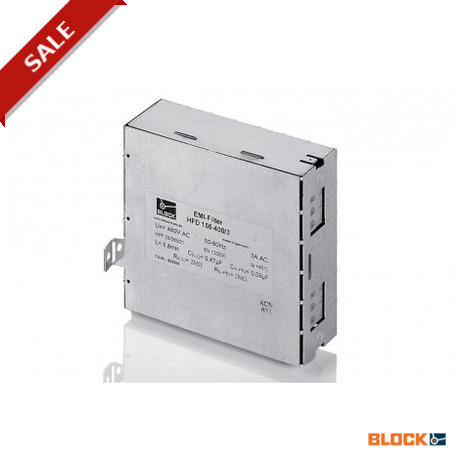

HFD 156-400/3 BLOCK EMI Filter

Reference: HFD 156-400/3

Manufacturer: BLOCK

Description:

EMI Filter
EMI Filter HFD 156-400/3
Radio interference suppression filter HFD 156

Categories:

  • BLOCK > electrical stabilizers filters

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 72,69 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

HFD 156-400/3

Radio interference suppression filter HFD 156

Rated voltage 3 x 480 Vac Rated current 3 x 3 A Leakage current (50 Hz)* 1.00 mA
Display options
Version Rated voltage Rated current Leakage current (50 Hz)*
HFD 156-400/3 3 x 480 Vac 3 x 3 A 1.00 mA
HFD 156-400/6 3 x 480 Vac 3 x 6 A 1.00 mA
HFD 156-400/10 3 x 480 Vac 3 x 10 A 1.00 mA
HFD 156-400/12 3 x 480 Vac 3 x 12 A 1.00 mA
HFD 156-400/16 3 x 480 Vac 3 x 16 A 1.00 mA

Technical data for HFD 156-400/3

Operating data
Rated voltage 3 x 480 Vac
Voltage range 3 x 0 - 480 Vac
Rated current 3 x 3 A
Leakage current (50 Hz)** 9.00 mA
Leakage current (50 Hz)* 1.00 mA
Rated frequency 50 - 60 Hz
Power loss 2.2 W
Overrating Capacity 150 %, shortly
Environment
Ambient temperature max. 45 °C
Climatic category 25/085/21
[in accordance with EN 60068-1]
Safety and protection
Type Metal enclosure
Protection index IP 20
Safety class (prepared) I
Test voltage 2100 Vdc Phase/Phase, 2700 Vdc Phase/PE
Terminal and mounting
Terminals phase 2.5 mm² spring terminal
Terminals PE Tab connector, 6.3 x 0.8 mm
Fixing method DIN Rail mounting
Measures and weights
Depth 127 mm
Height 110 mm
Width 45 mm
Weight 0.48 kg
Notes
* Leakage current measured against the maximum permissible input voltage fluctuation in accordance with IEC 38 ±10 %
** Leakage current by loss of two phases

Info on HFD 156 series

General Data
  • Rated current 3 x 3 - 3 x 16 A
  • Degree of protection IP 20
  • Rated voltage 3 x 480 Vac
  • Voltage range 3 x 0 - 480 Vac
  • Leakage current 1.00 mA
  • Ambient temperature max. 45 °C
Benefits
  • Increase in the interference immunity of the connected consumer
  • Efficient filter effect against line-bound interference emissions
  • Single-stage filter concept
  • DIN rail mounting
  • For general requirements
Standards
  • Radio interference suppression filter to DIN EN 133200
Approvals
Applications
  • Radio interference suppression filter for mains-side interference suppression of power supplies and electronic devices.
