BLOCKHF1P 3,68-230 BLOCK Harmonic Filter

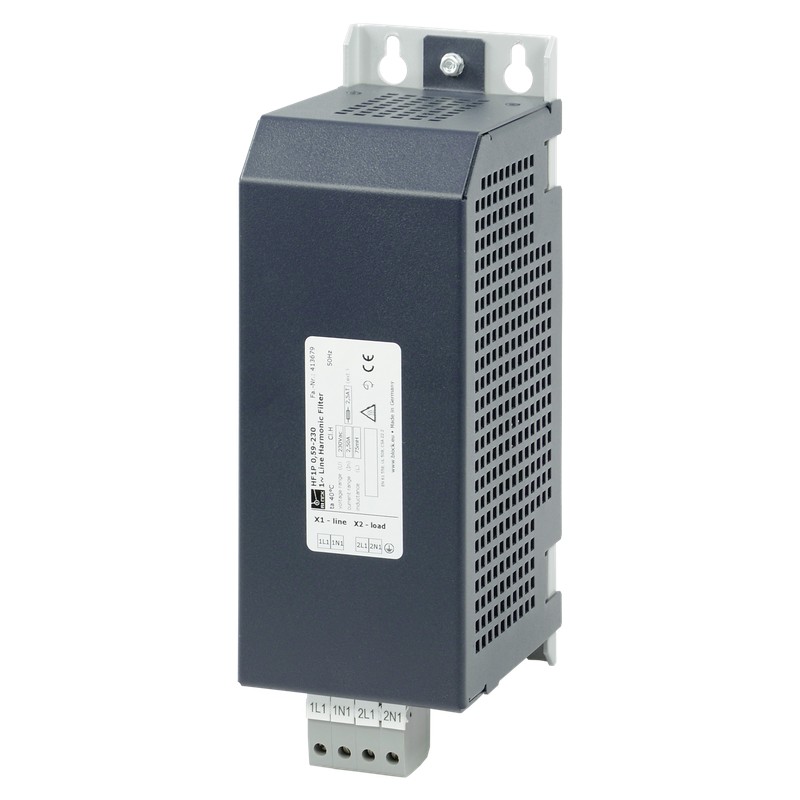

BLOCK HF1P 3,68-230 HF1P 3,68-230 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

HF1P 3,68-230 BLOCK Harmonic Filter

Reference: HF1P 3,68-230

Manufacturer: BLOCK

Description:

Harmonic Filter
Harmonic Filter HF1P 3,68-230

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 947,70 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

›Sinusoidal current consumption from the main in devices with uncontrolled B2U diode rectifiers

›Compliance with EN 61000-3-2, EN 61000-3-12

›Support in the compliance with IEEE 519, D-A-CH-CZ

›Power factor 0,95 at rated current

›Operation at 50 Hz possible

›Use of the HF1P as a central sum filter for multiple converters possible

ProductHarmonic filter
Order numberHF1P 3,68-230
SeriesHF1P
Inductance11 mH
Rated current16 Aac
Linear current24 Aac
Rated voltage range207 V to 253 V
Rated voltage230 V
Phases1
Frequency range50 Hz
Motor or converter power3 kW / 4.02 HP
EN Insulation classH (180°C)
UL Insulation classclass 180
Duty Cycle100 %
Power loss80.00 W
Wire materialCopper
General
Duty Cycle100 %
Cooling typeAN
Switching groupIa0
Environment
Ambient temperature-10 °C to 40 °C / 14 °F to 104 °F
Max. installation height1,000 m / 3,281 ft
Protection and Safety
Protection typeIP20
Protection class (prepared)I
Degree of contamination2
Electrical Connections
Input terminalScrew terminal
Output terminalScrew terminal
Terminal PEBolt connection
Size and Weight
Width160 mm / 6.3 in
Height239 mm / 9.41 in
Depth401 mm / 15.79 in
Weight21.4 kg / 47.179 lbs
