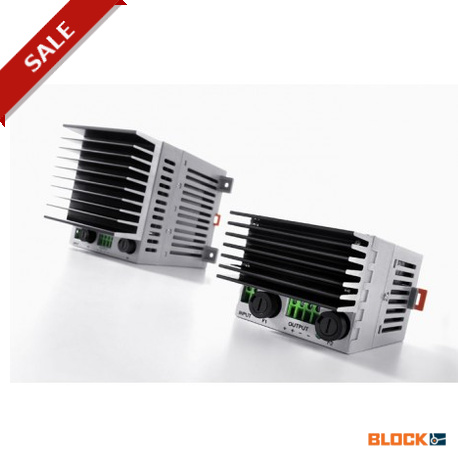

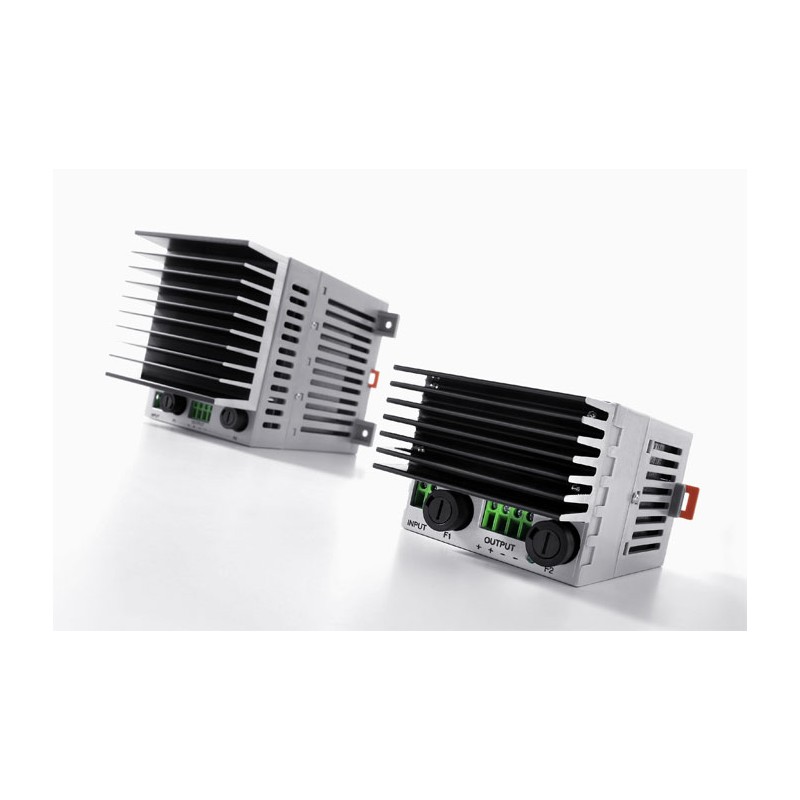

GLS 230/24-3
BLOCK
1
conventional Power Supply
Sources and Fuses
* Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General Data Input rated voltage 230 Vac Output rated voltage 24 Vdc Output rated current 0.5 ‑ 5 A Residual ripple factor≤30 mVss Ambient temperature 40° C, 60° C by reduced power Protection index IP 00 Panel installation on mounting rails Advantages Accurate output current regulation Short settling time Low ripple factor Input and output protection Standards Linear stabilised dc power supply / Safety isolating transformerto VDE 0570 part 2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 1012, UL 5085 EMC:EN 61000‑4‑4 / EN 61000‑4‑5 (Interference immunity), EN 50011 (Interference emissions) Approvals UL 5085‑1/‑2, CSA 22.2 No.66 Linear regulated DC power supply for environments susceptible to interference for example in measurement or data transmission.
Title: | Size: | Type: |
---|---|---|
PDF CATÁLOGO BLOCK EN.pdf | 61 Mbytes | |
BLOCK-GLS230243-GLS 230/24-3 | 3 Mbytes | |
