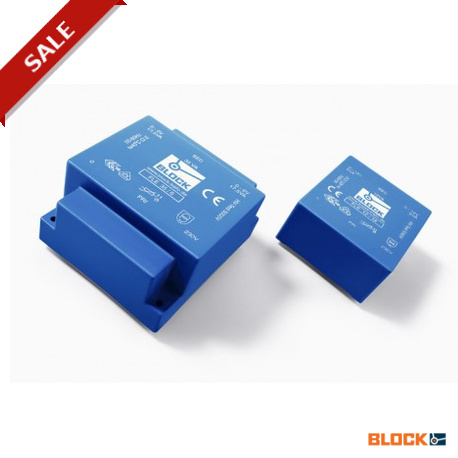

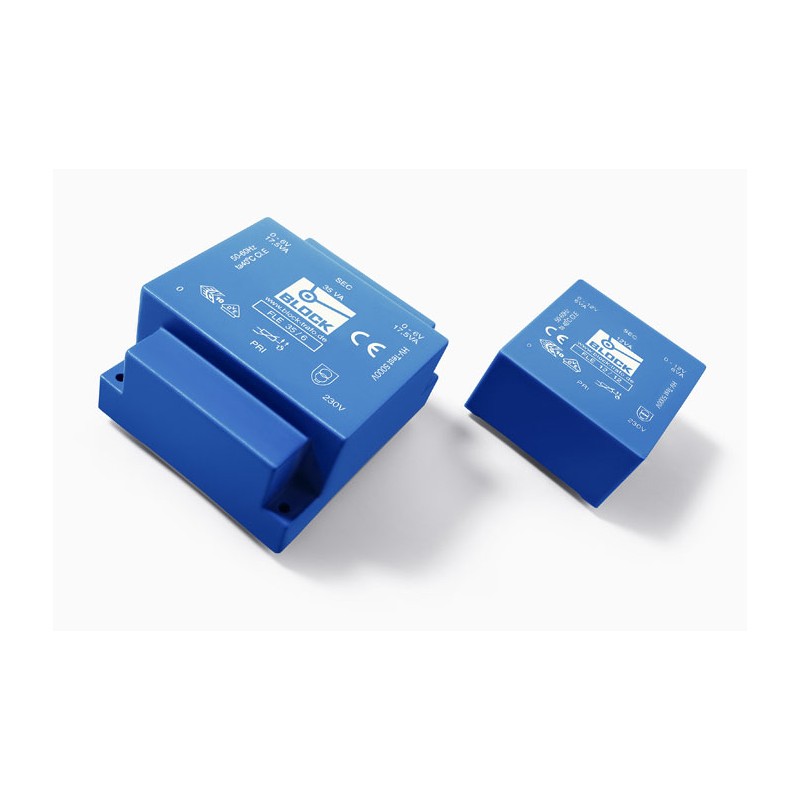

FLE 4/12
BLOCK
1
PCB Transformers
transformers
* Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General Data Rated input voltage 230 Vac Rated output voltage 2 x 6 ‑ 2 x 18 Vac Rated power 4 ‑ 35 VA Insulation class E Maximum ambient temperature 40 °C Efficiency up to 78 % Degree of protection IP 00 Advantages Minimum size at high output Low height Integrated overload protection using PTCin the input Double output voltage for series or parallel connection Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation Coil shell in 2‑chamber technology Self‑extinguishing potting material Standards Safety isolating transformer to: VDE 0570 Part 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6 Approvals ENEC 10 (VDE) As a safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
Title: | Size: | Type: |
---|---|---|
PDF CATÁLOGO BLOCK EN.pdf | 61 Mbytes | |
BLOCK-FLE412-FLE 4/12 | 868 Kbytes | |
Download general catalog |
