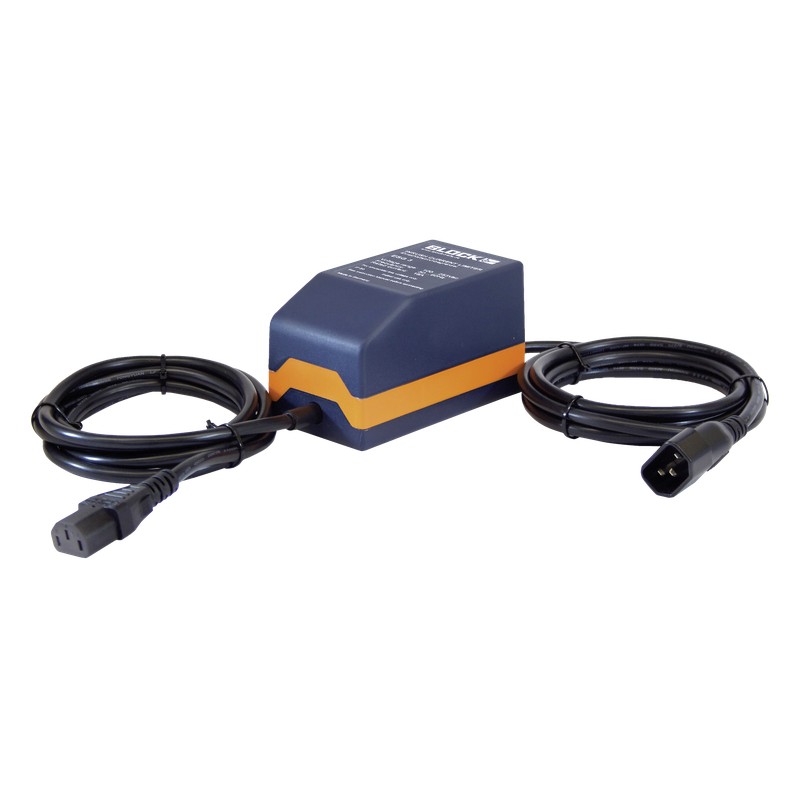

ESG 7 BLOCK Inrush Current Limiter
ESG 7
BLOCK
Inrush Current Limiter
Inrush Current Limiter ESG 7
Inrush current limiter, current-controlled with no-load detection
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Dynamic limit times for optimum starting of consumers with high inrush currents
›Current-controlled with no-load detection, hence full current limit protection, even if momentarily switched back on
›Robust plastic enclosure for rail mounting, e.g. in consumer units or meter mounting boards
›May be used anywhere for stationary and mobile applications
›High degree of protection
| Product | Inrush current limiter, current-controlled with no-load detection |
| Order number | ESG 7 |
| Series | ESG |
| Rated voltage | 230 V |
| Rated voltage range | 99 V to 253 V |
| Frequency range | 50 Hz to 60 Hz |
Environment
| Ambient temperature | 0 °C to 40 °C / 32 °F to 104 °F |
Protection and Safety
| Protection type | IP65 |
| Degree of contamination | PD 2 |
| Overvoltage category | II |
Size and Weight
| Width | 66 mm / 2.6 in |
| Height | 70 mm / 2.76 in |
| Depth | 121 mm / 4.76 in |
| Weight | 0.7 kg / 1.543 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| ESG 7 ESG 7 EN_ESG 7.pdf | 164 Kbytes |
|
| Download general catalog |
|
