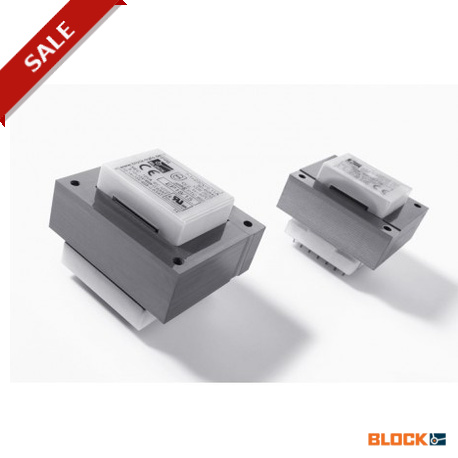

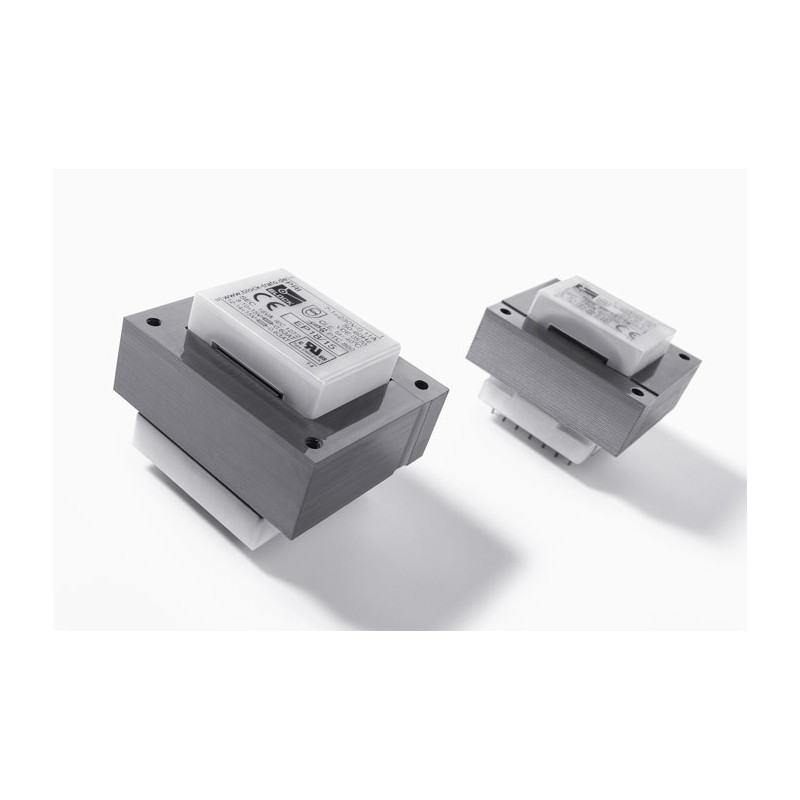

EP 7,5/6
BLOCK
1
PCB Transformers
transformers
* Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General Data Rated input voltage 230 Vac Rated output voltage 2 x 6 ‑ 2 x 15 Vac Rated power 4.5 ‑ 35 VA Insulation class E Maximum ambient temperature 40 °C Efficiency up to 79 % Degree of protection IP 00 Advantages Minimum size at high output Double output voltage for series or parallel connection Very good moisture protection and low noise thanks to BLOCKIMPEX vacuum impregnation Encapsulated safety coil bodies in 2‑chamber technology Contact protected on the circuit board thanks to covered solder pin strips Stable connection technology with injected round wire soldering pins Additional mounting option with holes in the core Standards Safety isolating transformerto: VDE 0570 Teil 2‑6, DIN EN 61558‑2‑6, EN 61558‑2‑6, IEC 61558‑2‑6, UL 5085‑1/‑2, CSA 22.2 No.66 Safety isolating transformer for the safe electrical isolation of the input and output sides. The transformer is suitable for creating SELV and PELV circuits because of the limit on the output voltage.
Title: | Size: | Type: |
---|---|---|
PDF CATÁLOGO BLOCK EN.pdf | 61 Mbytes | |
BLOCK-EP756-EP 7,5/6 | 910 Kbytes | |
Download general catalog |
