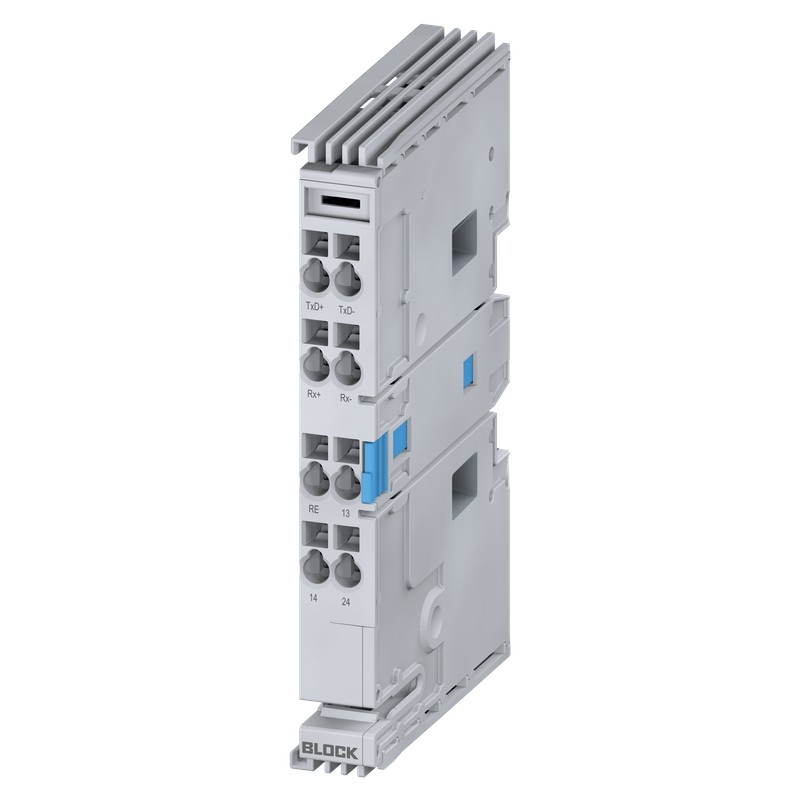

BLOCKEB-MODBUS-RTU BLOCK Generic Electronic Accessory
BLOCK EB-MODBUS-RTU EB-MODBUS-RTU - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EB-MODBUS-RTU BLOCK Generic Electronic Accessory

Reference: EB-MODBUS-RTU

Manufacturer: BLOCK

Description:

Generic Electronic Accessory
Generic Electronic Accessory EB-MODBUS-RTU
Communication module

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 63,90 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›Communication interface between BUS module and EasyB modules

›Up to 31 units with a total of 40 channels per unit

›All functions of the circuit breaker (communication, characteristics) can continue to be used.

›Automatic viation of all signals by right-hand alignment

ProductCommunication module
Order numberEB-MODBUS-RTU
SeriesEB-ACCESSORIE
Output
Idle current @ 24 V26 mA
Max. feedback resistance35 Vdc
Power losses in stand-by mode0.40 W
Signaling
Potential-free signal output24" Solid State Relay 58 Vdc/ 40 Vac/ 100 mA
Potential-free signal output14" Solid State Relay 58 Vdc/ 40 Vac/ 100 mA
Signal input (ON/OFF/Reset)Reset input Level high = min. 11 Vdc, max. 30 Vdc Level low = min. 0 Vdc, max. 5 Vdc Jitter: +/- 5 %; +/- 5 ms
Environment
Climate class according to EN 607213K3
Ambient temperature-25 °C to 70 °C / -13 °F to 158 °F
Storage temperature-25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation5 % to 96 %
Cooling typenatural convection
Required minimum distance (side)0 mm
Required minimum distance (top/bottom)30 mm
Protection and Safety
Degree of pollution2
Size and Weight
Width12 mm / 0.47 in
Height99 mm / 3.9 in
Depth60 mm / 2.36 in
Weight0.04 kg / 0.088 lbs

DATASHEET - PDF
