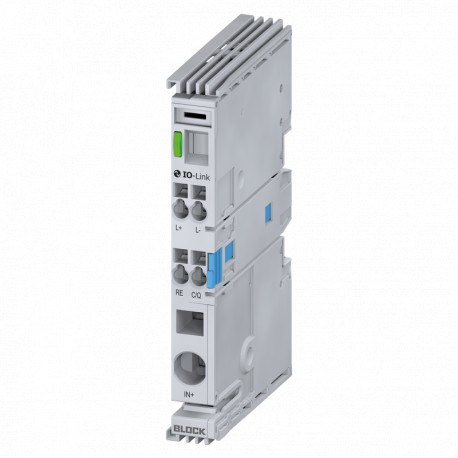

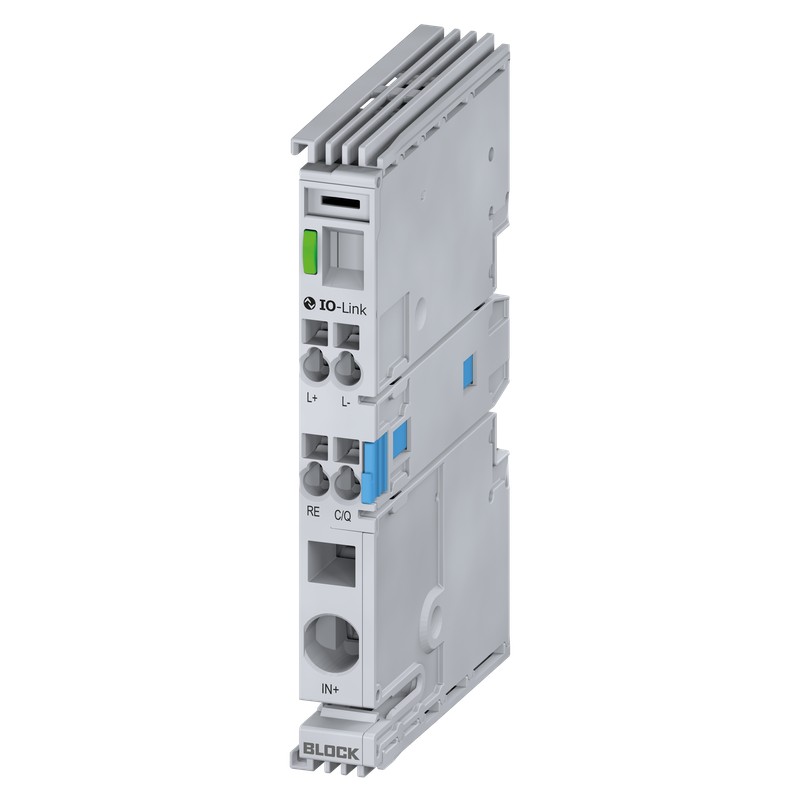

EB-IO-LINK1 BLOCK Generic Electronic Accessory
EB-IO-LINK1
BLOCK
Generic Electronic Accessory
Generic Electronic Accessory EB-IO-LINK1
Communication module
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Interface between PLC and EasyB modules
›Communication with up to 16 channels
›All functions of the circuit breaker (communication, characteristics) can still be utilized.
›Automatic through-contacting of all signals by right-side alignment.
| Product | Communication module |
| Order number | EB-IO-LINK1 |
| Series | EB-ACCESSORIE |
Input
| Switch-on threshold | 17.50 V |
Output
| Switch-off threshold | 16.7 V |
| Idle current @ 24 V | 33 mA |
| Max. feedback resistance | 35 Vdc |
| Power losses in stand-by mode | 0.36 W |
Signaling
| Potential-free signal output | - |
| Potential-free signal output | - |
| Signal input (ON/OFF/Reset) | Reset input Level high = min. 11 Vdc, max. 30 Vdc Level low = min. 0 Vdc, max. 5 Vdc Jitter: +/- 5 %; +/- 5 ms |
Environment
| Climate class according to EN 60721 | 3K3 |
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
Protection and Safety
| Degree of pollution | 2 |
Size and Weight
| Width | 12 mm / 0.47 in |
| Height | 99 mm / 3.9 in |
| Depth | 60 mm / 2.36 in |
| Weight | 0.04 kg / 0.088 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| Download general catalog |
|
