BLOCKEB-IO-LINK BLOCK Generic Electronic Accessory

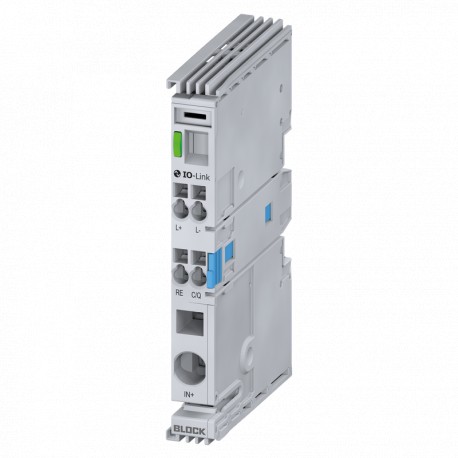

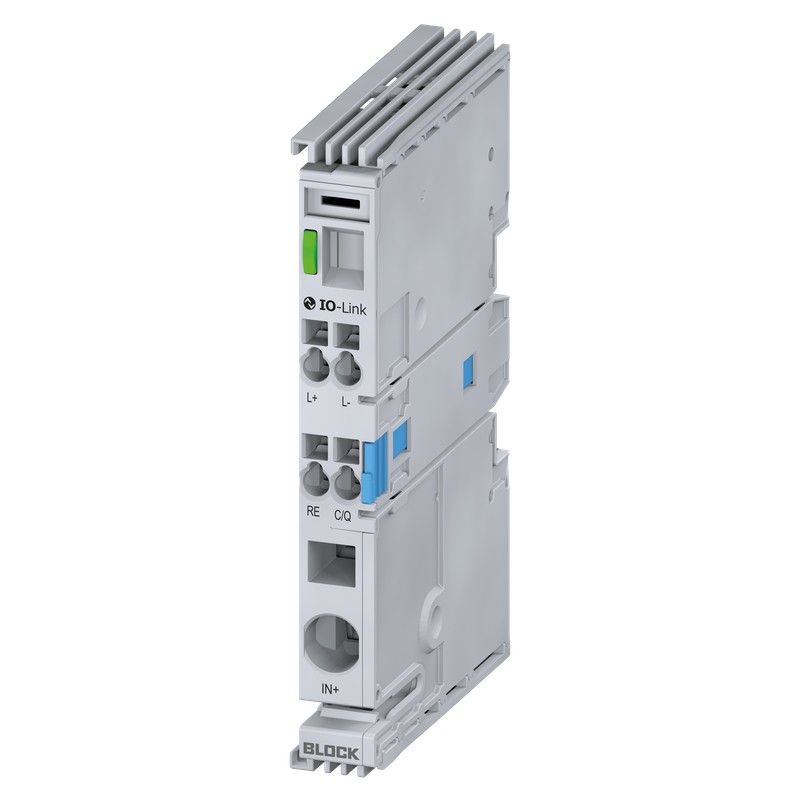

BLOCK EB-IO-LINK EB-IO-LINK - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EB-IO-LINK BLOCK Generic Electronic Accessory

Reference: EB-IO-LINK

Manufacturer: BLOCK

Description:

Generic Electronic Accessory
Generic Electronic Accessory EB-IO-LINK
Communication module

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 71,82 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

›Interface between PLC and EasyB modules

›Communication with up to 40 channels

›All functions of the circuit breaker (communication, characteristics) can still be utilized.

›Automatic through-contacting of all signals by right-side alignment.

ProductCommunication module
Order numberEB-IO-LINK
SeriesEB-ACCESSORIE
Input
Switch-on threshold17.50 V
Output
Switch-off threshold16.7 V
Idle current @ 24 V33 mA
Max. feedback resistance35 Vdc
Power losses in stand-by mode0.36 W
Signaling
Potential-free signal output-
Potential-free signal output-
Signal input (ON/OFF/Reset)Reset input Level high = min. 11 Vdc, max. 30 Vdc Level low = min. 0 Vdc, max. 5 Vdc Jitter: +/- 5 %; +/- 5 ms
Environment
Climate class according to EN 607213K3
Ambient temperature-25 °C to 70 °C / -13 °F to 158 °F
Storage temperature-25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation5 % to 96 %
Cooling typenatural convection
Protection and Safety
Degree of pollution2
Size and Weight
Width12 mm / 0.47 in
Height99 mm / 3.9 in
Depth60 mm / 2.36 in
Weight0.04 kg / 0.088 lbs

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE BLOCK EN
62 Mbytes
