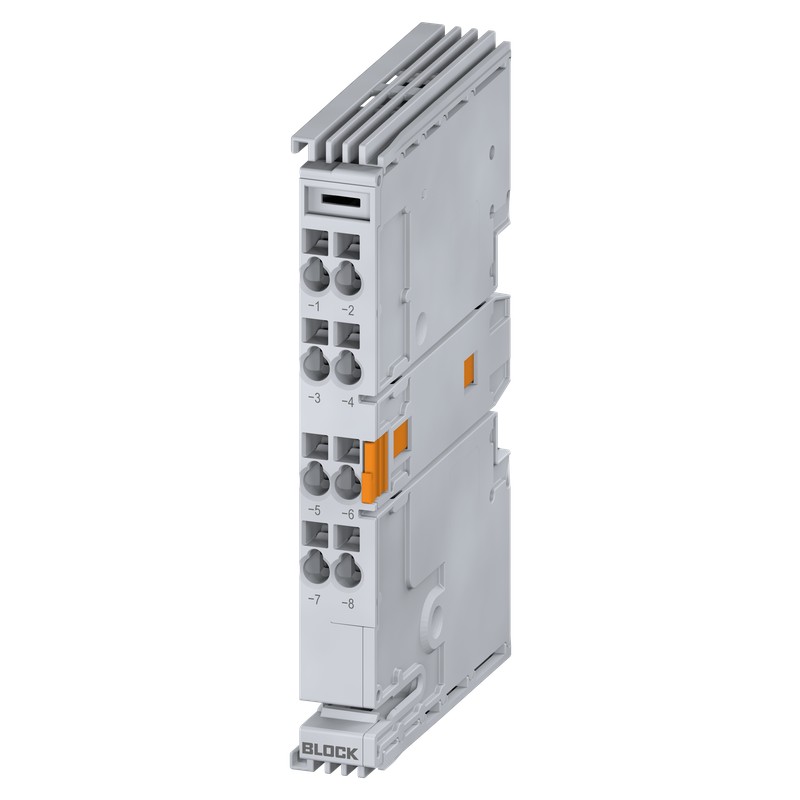

EB-GND8 BLOCK Generic Electronic Accessory
EB-GND8
BLOCK
Generic Electronic Accessory
Generic Electronic Accessory EB-GND8
Ground module
Home > BLOCK
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲›Potential distributor for the negative pole with up to 8 extra channels
›Right-side alignment with all EasyB modules
›Automatic through-contacting of all signals by right-side alignment
| Product | Ground module |
| Order number | EB-GND8 |
| Series | EB-ACCESSORIE |
Input
| Rated input voltage | 24 Vdc |
| Max. continuous current of the module | 40 A |
Output
| Rated output voltage | 24 Vdc |
| Max. voltage drop between input and output | 9 mV |
| Max. power loss | 360 mW |
| Max. feedback resistance | 35 Vdc |
Environment
| Climate class according to EN 60721 | 3K3 |
| Ambient temperature | -40 °C to 70 °C / -40 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
| Required minimum distance (side) | 0 mm |
| Required minimum distance (top/bottom) | 30 mm |
Protection and Safety
| Degree of pollution | 2 |
| Degree of protection according to EN 60529 | IP 20 |
Size and Weight
| Width | 12 mm / 0.47 in |
| Height | 99 mm / 3.9 in |
| Depth | 60 mm / 2.36 in |
| Weight | 0.04 kg / 0.088 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| EB-GND8 EB-GND8 EN_EB-GND8.pdf | 436 Kbytes |
|
| Download general catalog |
|
