BLOCKEB-GND4 BLOCK Generic Electronic Accessory

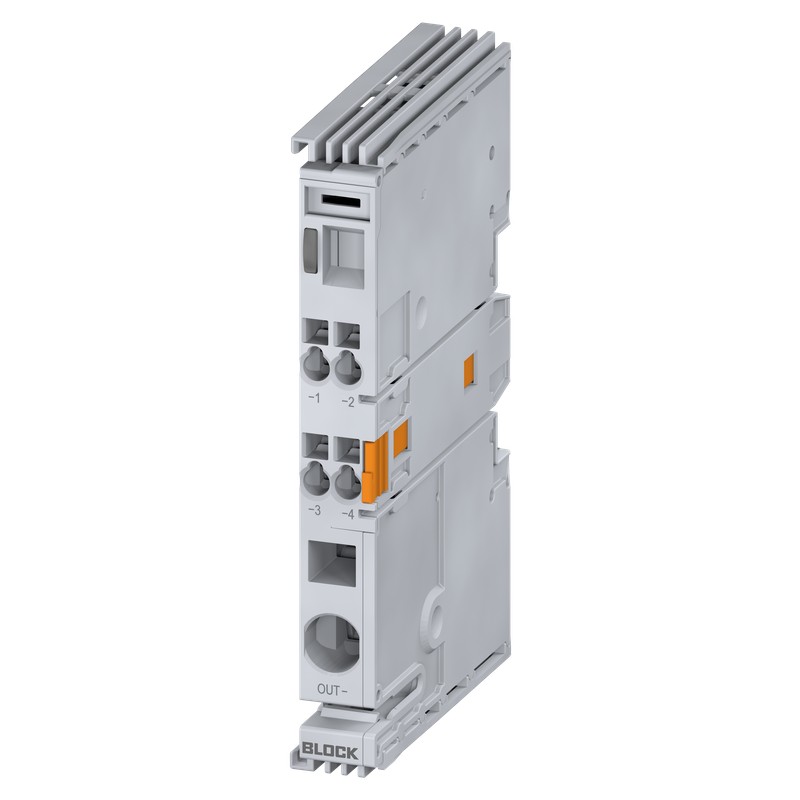

BLOCK EB-GND4 EB-GND4 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EB-GND4 BLOCK Generic Electronic Accessory

Reference: EB-GND4

Manufacturer: BLOCK

Description:

Generic Electronic Accessory
Generic Electronic Accessory EB-GND4
Ground module

Categories:

  • BLOCK

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 18,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 18-20 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

›Potential distributor for the negative pole with up to 4 extra channels

›Right-side alignment with all EasyB modules

›Automatic through-contacting of all signals by right-side alignment

ProductGround module
Order numberEB-GND4
SeriesEB-ACCESSORIE
Input
Rated input voltage24 Vdc
Max. continuous current of the module40 A
Output
Rated output voltage24 Vdc
Max. voltage drop between input and output9 mV
Max. power loss360 mW
Max. feedback resistance35 Vdc
Environment
Climate class according to EN 607213K3
Ambient temperature-40 °C to 70 °C / -40 °F to 158 °F
Storage temperature-25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation5 % to 96 %
Cooling typenatural convection
Required minimum distance (side)0 mm
Required minimum distance (top/bottom)30 mm
Protection and Safety
Degree of pollution2
Degree of protection according to EN 60529IP 20
Size and Weight
Width12 mm / 0.47 in
Height99 mm / 3.9 in
Depth60 mm / 2.36 in
Weight0.04 kg / 0.088 lbs
