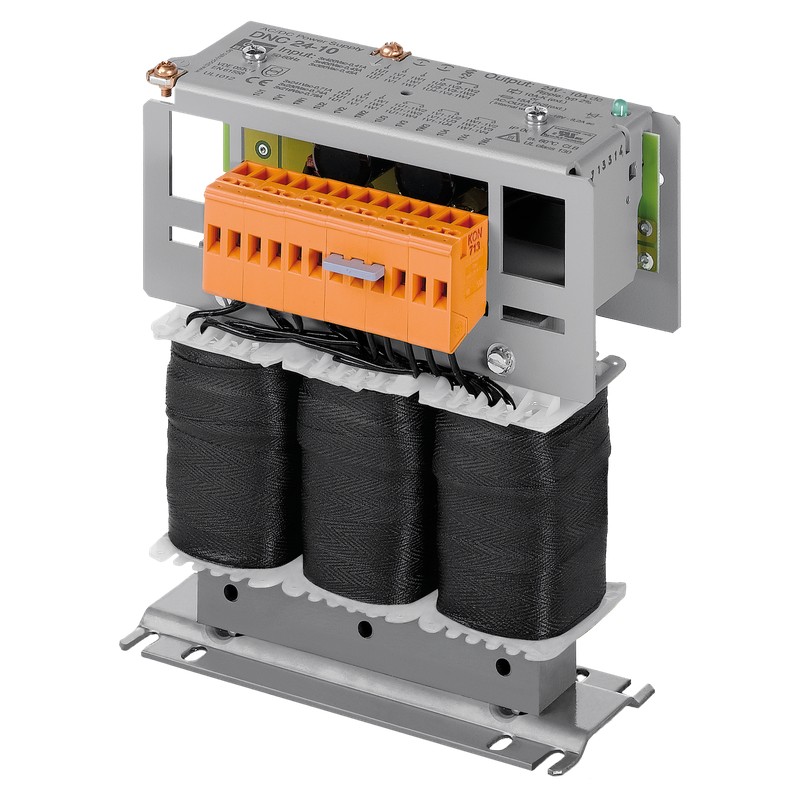

DNC 24-15 C BLOCK conventional Power Supply
DNC 24-15 C
BLOCK
conventional Power Supply
conventional Power Supply DNC 24-15 C
Non-stabilized DC power supply, three-phase
Sources and Fuses
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲The robust, unregulated DC power supplies of the DNC series focus on the core task of voltage and current supply while meeting the requirements for safety isolating transformers according to EN (IEC) 61558-2-6. The power supply features high overload capacity, and the DC OK status is indicated by an LED.
›Insensitive to surge voltage and transients
›Excellent corrosion protection and low noise emission thanks to BLOCK IMPEX vacuum impregnation
›Output-side configuration with MKT capacitors
›Varistor protection circuit
›Touch-protected connection terminals according to UVV BGV A3
| Product | Non-stabilized DC power supply, three-phase |
| Order number | DNC 24-15 C |
| Series | DNC |
| Duty Cycle | 100 % |
| EN Insulation class | B (130°C) |
| Frequency range | 50 Hz to 60 Hz |
| Power | 360 VA |
| Wire material | Copper |
| UL Insulation class | class 130 |
General
| Short circuit proof | not short-circuit proof |
| Cooling type | AN |
| Switching group | IIId0 |
Environment
| Max. installation height | 2,000 m / 6,562 ft |
| Ambient temperature | -20 °C to 60 °C / -4 °F to 140 °F |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | I |
| Degree of contamination | 1 |
Electrical Connections
| Output terminal | Screw terminal |
| Input terminal | Screw terminal |
| Terminal PE | Screw terminal |
Size and Weight
| Width | 165 mm / 6.5 in |
| Height | 190 mm / 7.48 in |
| Depth | 164 mm / 6.46 in |
| Weight | 6.221 kg / 13.715 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| DNC 24-15 C DNC 24-15 C EN_DNC 24-15 C.pdf | 354 Kbytes |
|
