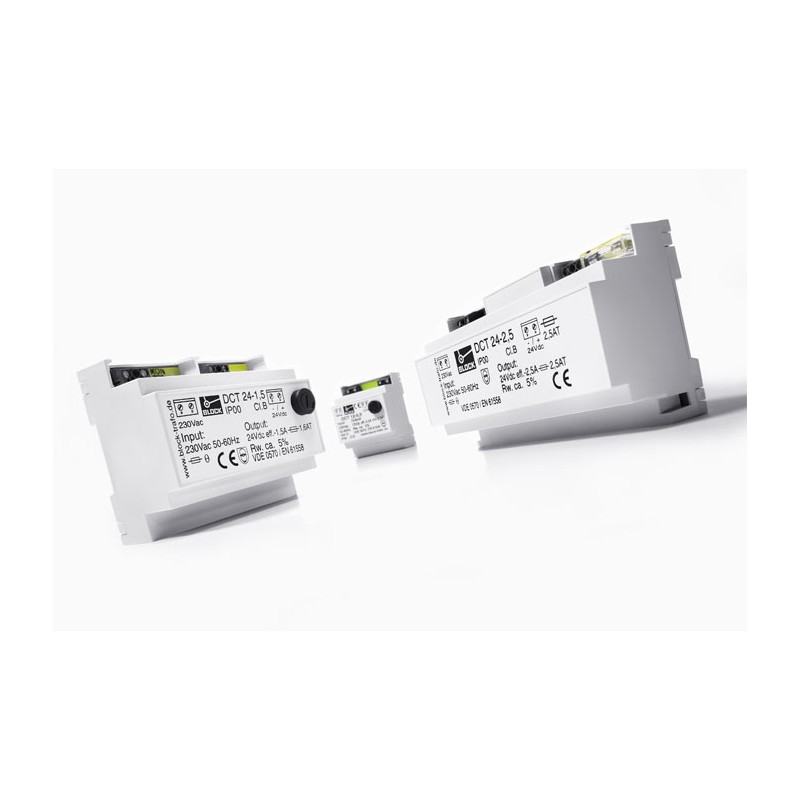

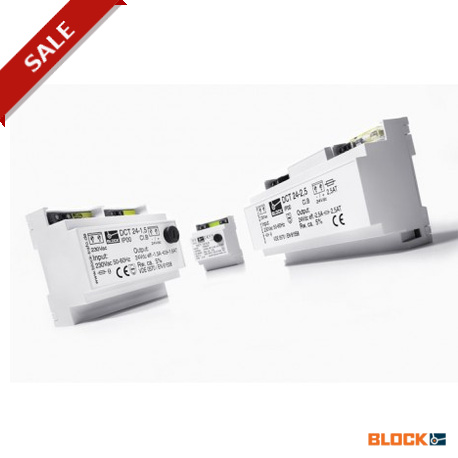

DCT 24-2,5 BLOCK conventional Power Supply

General Data Input rated voltage 230 Vac Output rated voltage 12 ‑ 24 Vdc Output rated current 0.5 ‑ 4 A Residual ripple factor ≤5 % Ambient temperature +25 °C Protection index IP 00 Advantages Thermal fuse in the input and a fuse protection for the output Separate windings Capacitor accessories Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation Stable plastic housing for rail mounting, e.g. in consumer units or meter mounting boards Standards Non‑stabilised dc power supply / Safety isolating transformerto VDE 0570 part 2‑6, EN 61558‑2‑6, IEC 61558‑2‑6 Robust DC power supply is concentrated on the core task of voltage and power supply. Flat step profile optimized for installation in control panels in building automation.
