BLOCKelectrical stabilizers filtersBSD 250 BLOCK Voltage Stabilizers

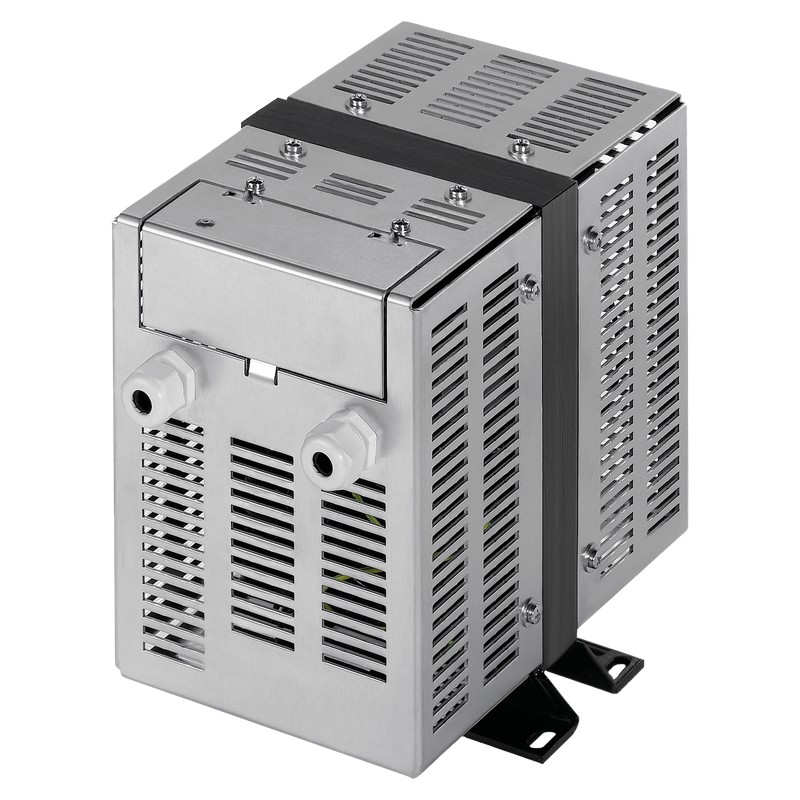

BLOCK BSD 250 BSD 250 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BSD 250 BLOCK Voltage Stabilizers

Reference: BSD 250

Manufacturer: BLOCK

Description:

Voltage Stabilizers
Voltage stabilizer

Categories:

  • BLOCK > electrical stabilizers filters

Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

›Compensation for mains voltage fluctuations

›Attenuation of asymmetric parasitic voltage peaks

›Bridging momentary voltage dips

›May be switched between high control precision and elevated parasitic voltage attenuation

›Galvanic isolation from the mains

›Short-circuit proof

›No-load proof

›RF interference free

Input
Input voltage range230 Vac
Frequency rangeto 50 Hz
Output
Rated Output Current1.01 A
Rated output voltage230 Vac
General
Rated current1.01 A
Total harmonic distortion<5 % at ohmic load
Phases1
Bypass time at rated load10.00 ms
General
DesignEncapsulated
Short circuit proofconditionally short-circuit proof
Safety and protection
Protection class (prepared)I
Protection typeIP00
General
MountingFixing rail
Weight10.75 kg / 23.7 lbs

DATASHEET - PDF

Title
Size
Type
BSD 250 BSD 250 EN_BSD 250.pdf
346 Kbytes
PDF CATALOGUE BLOCK EN
62 Mbytes
