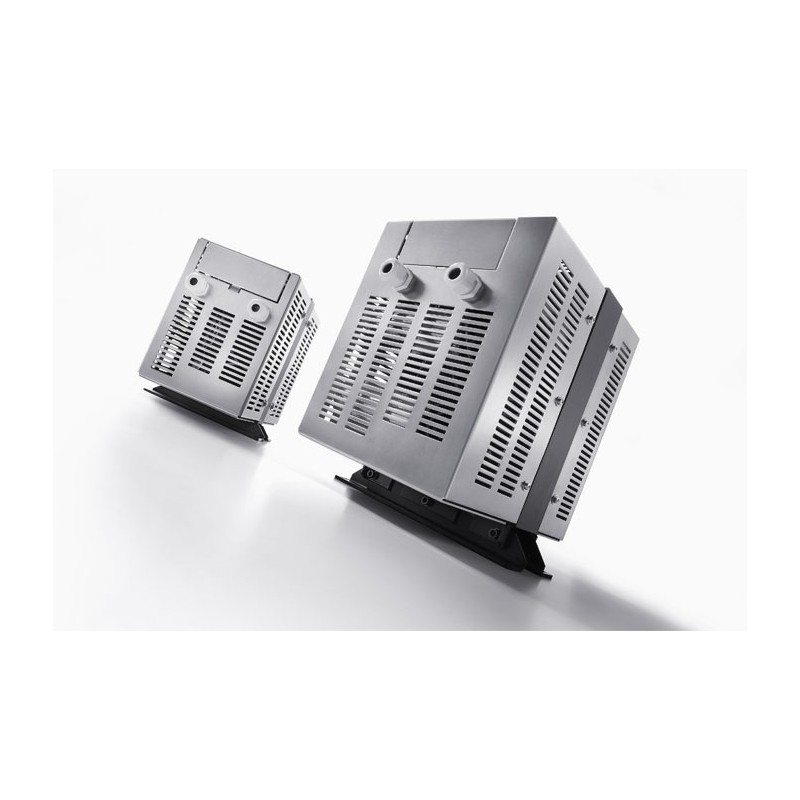

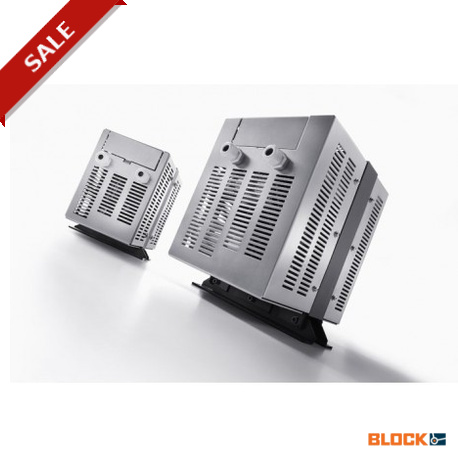

BSD 2000 BLOCK Voltage Stabilizers

General Data Rated input voltage 230 Vac Rated output voltage 230 Vac Rated power 60 ‑ 3000 VA Degree of protection IP 00 Ambient temperature +40 °C Advantages Compensation for mains voltage fluctuations Attenuation of asymmetric parasitic voltage peaks Bridging momentary voltage dips May be switched between high control precision and elevated parasitic voltage attenuation Galvanic isolation from the mains Short‑circuit proof No‑load proof RF interference free Standards Magnetic voltage stabiliser acting as mains transformer in accordance with VDE 0570 part 2;2‑12, EN 61558‑1; 2‑12, IEC 61558‑1;2‑12 Magnetic voltage stabilizer securing the supply voltage in the event of mains overvoltage, mains undervoltage, voltage dips and voltage surges and in the case of brief voltage interruptions.
