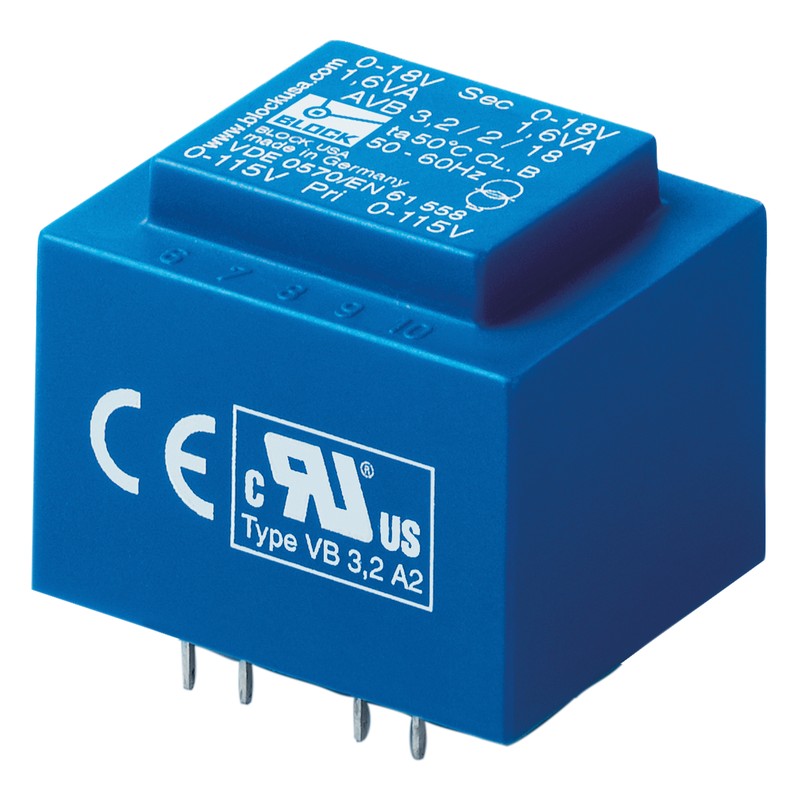

AVB 3,2/2/9 BLOCK PCB Transformers
AVB 3,2/2/9
BLOCK
PCB Transformers
PCB Transformers AVB 3,2/2/9
Short circuit proof PCB transformer, safety isolating transformer
transformers
Brand new product in its original packaging covered by the warranties and certifications provided by BLOCK
Related products
▲Best sellers
▲More info
▲The PCB transformers of the AVB series feature dual input coils for series or parallel connection and are specifically designed for operation at high ambient temperatures. Thanks to the unique XtraDenseFill resin encapsulation process, the transformers provide permanent corrosion protection, high insulation value, and maximum electrical conductivity.
›Safety isolating transformer according to EN (IEC) 61558-2-6
›Minimal size with high performance
›With dual output coils for series or parallel connection
›Absolutely short-circuit proof
›Self-extinguishing encapsulation and hood material
| Product | Short circuit proof PCB transformer, safety isolating transformer |
| Order number | AVB 3,2/2/9 |
| Series | AVB |
| Power | 3.2 VA |
| Input | 2 x 115 V |
| Output | 2 x 9 V • 0.177 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 2.3 W |
| No-Load Losses | 0.37 W |
| Short circuit voltage uk | 36 % |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 54.5 % |
General
| Short circuit proof | inherently short-circuit proof |
| Switching group | IIii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 50 °C / -4 °F to 122 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Degree of contamination | 1 |
Electrical Connections
| Input terminal | Pin |
| Output terminal | Pin |
Size and Weight
| Width | 35 mm / 1.38 in |
| Height | 30.8 mm / 1.21 in |
| Depth | 41 mm / 1.61 in |
| Weight | 0.175 kg / 0.386 lbs |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE BLOCK EN.pdf | 62 Mbytes |
|
| AVB 3,2/2/9 AVB 3,2/2/9 EN_AVB 3,2_2_9.pdf | 334 Kbytes |
|
