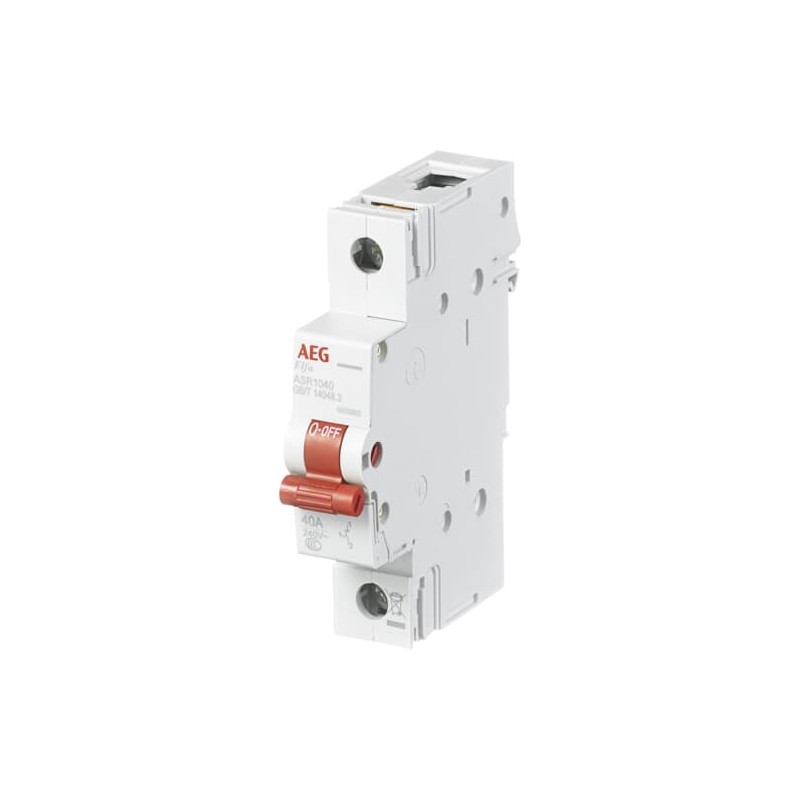

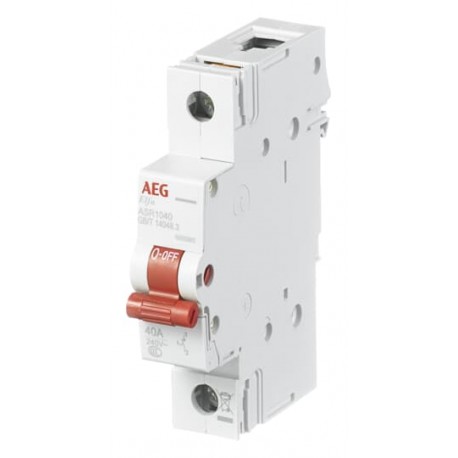

648369 4TQA648369R0000 AEG Int. cut load AST M 40A 1NA
648369
4TQA648369R0000
AEG
Int. cut load AST M 40A 1NA
AST M 40 10 Switch
Power management
* Brand new product in its original packaging covered by the warranties and certifications provided by AEG
Best sellers
▲More info
▲- Extended Product Type:
- AST M 40 10
- Product ID:
- 4TQA648369R0000
- EAN:
- 5413656483694
- Catalog Description:
- AST M 40 10 Switch
- Long Description:
- Aster M Main Switch Disconnectors series, from 80-125 A
Technical
- Standards:
- EN 60947-3
- Rated Operational Voltage:
- 240/415 V AC
- Rated Current (In):
- 40 A
- Rated Frequency (f):
- 50 / 60 Hz
- Number of Poles:
- 1
Environmental
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Width in Number of Modular Spacings:
- 1
- Product Net Width:
- 0.091m
- Product Net Height:
- 0.078m
- Product Net Depth / Length:
- 0.03m
- Product Net Weight:
- 0.126kg
Ordering
- Package Level 1 Units:
- box 12 piece
- Package Level 1 Gross Weight:
- 3.12 kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Installation
- Instructions and Manuals:
- No document needed
Popular Downloads
- Data Sheet, Technical Information:
- No document needed
Classifications
- ETIM 8:
- EC000216 - Switch disconnector
- ETIM 9:
- EC000216 - Switch disconnector (low voltage)
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Business
- CN8:
- 85369095
- eClass:
- V11.0 : 27371403
- Object Classification Code:
- Q
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 648369 4TQA648369R0000 EN_4TQA648369R0000.pdf | 93 Kbytes |
 |
