AEGTertiary4TQA604830R0000 AEG Block dif. DOC A 2P 32A 30mA

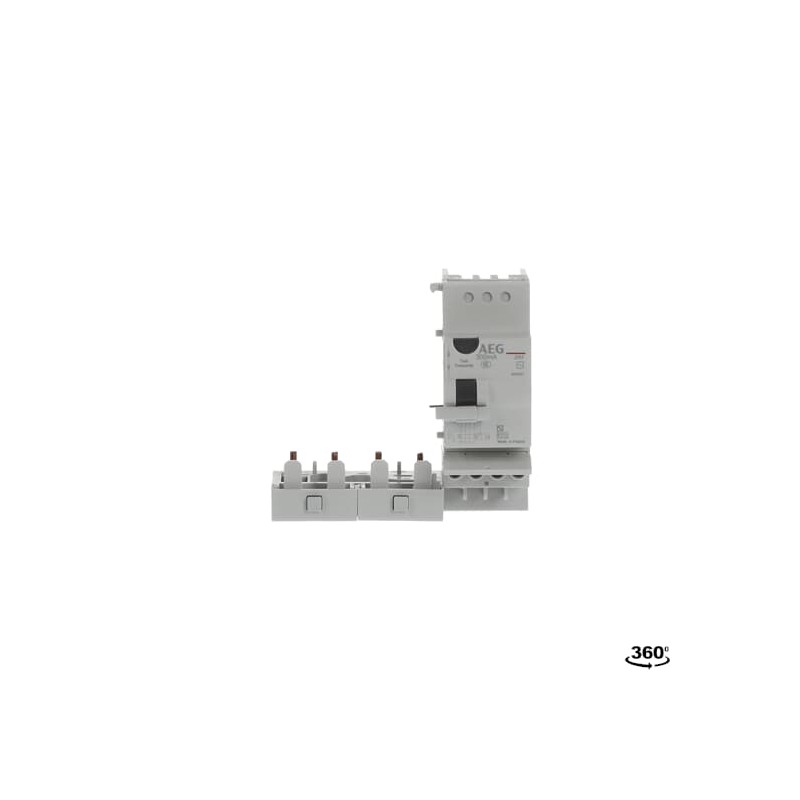

AEG 4TQA604830R0000 4TQA604830R0000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

4TQA604830R0000 AEG Block dif. DOC A 2P 32A 30mA

Reference: 4TQA604830R0000

Manufacturer: AEG

Description:

Block dif. DOC A 2P 32A 30mA
RCBO/DOC A/2 32/0.03 Residual Current Device Block 2P A type 30 mA

Categories:

  • AEG > Tertiary

Brand new product in its original packaging covered by the warranties and certifications provided by AEG

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Extended Product Type:
    RCBO/DOC A/2 32/0.03
  • Product ID:
    4TQA604830R0000
  • EAN:
    5413656048305
  • Catalog Description:
    RCBO/DOC A/2 32/0.03 Residual Current Device Block 2P A type 30 mA
  • Long Description:
    RCD Block to allow with a proper coupling of the MCBs associated a protection for the people (against leakage currents) and for the circuit (overloads and short circuits)

Technical

  • Standards:
    IEC/EN 60898-1
  • Type of Residual Current:
    A type
  • Rated Operational Voltage:
    240/415 V AC
  • Rated Impulse Withstand Voltage (Uimp):
    6 kV
  • Rated Current (In):
    32 A
  • Rated Residual Current:
    30 mA
  • Rated Frequency (f):
    50/60 Hz
  • Number of Protected Poles:
    2
  • Number of Poles:
    2
  • Operating Characteristic:
    Instantaneous
  • Position of Neutral Terminals:
    Right
    Left
  • Accessories Available:
    Yes

Environmental

Dimensions

  • Width in Number of Modular Spacings:
    2
  • Product Net Width:
    0.091m
  • Product Net Height:
    0.078m
  • Product Net Depth / Length:
    0.030m
  • Product Net Weight:
    0.126kg

Ordering

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Gross Weight:
    0.223 kg

Certificates and Declarations

Installation

Popular Downloads

Classifications

  • ETIM 8:
    EC000905 - Earth leakage circuit breaker
  • ETIM 9:
    EC000905 - Earth leakage circuit breaker
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Business
  • CN8:
    8536201090
  • eClass:
    V11.0 : 27142207
  • Object Classification Code:
    Q

DATASHEET - PDF

Title
Size
Type
4TQA604830R0000 4TQA604830R0000 EN_4TQA604830R0000.pdf
77 Kbytes
