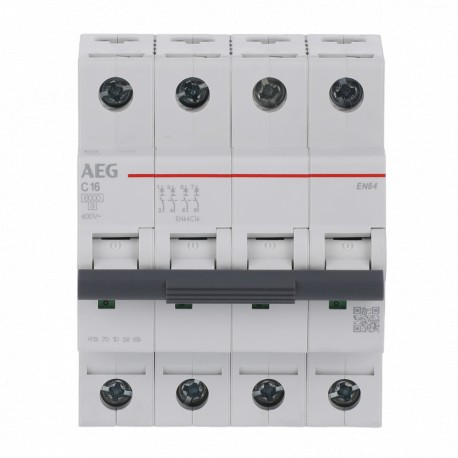

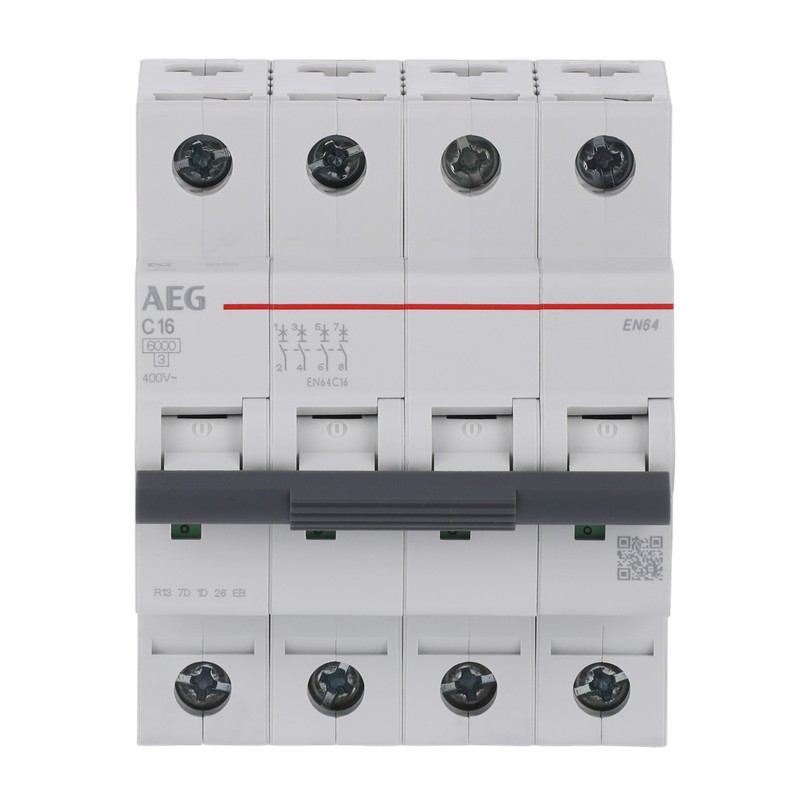

2CDS254088R0164 AEG Int. mag. EN60 4P 16A C
2CDS254088R0164
AEG
Int. mag. EN60 4P 16A C
EN60 4P 16A C circuit breaker
Miniature Circuit Breaker - EN60 - 4P - 16 A - C - 6 kA
Circuit breakers and fuses > Miniature circuit breaker (MCB)
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by AEG
Best sellers
▲More info
▲| Circular Value | |
|---|---|
| Extended Product Lifetime | Product Durability |
| End Of Life Disassembling Instructions | 9AKK108468A7015 |
| Environmental Product Declaration - EPD | 9AKK108468A8273 |
| Technical | |
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 10 kA |
| (400 V AC) 10 kA | |
| (230 V) 10 kA | |
| (400 V) 10 kA | |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Number of Protected Poles | 4 |
| Number of Poles | 4P |
| Number of Modular Spacings per DIN Rail | 4 |
| Actuator Type | Toggle |
| Screw Terminal Type | Failsafe Biconnect Fork Top/Bottom |
| Actuator Marking | Red ON / Green OFF |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar Fork 10 / 16mm² mm² |
| Flexible with Ferrule 0.75 ... 25 mm² | |
| Flexible 0.75 ... 35 mm² | |
| Rigid 0.75 ... 35 mm² | |
| Wire Stripping Length | 12.5 mm |
| Terminal Type | Screw Terminals |
| Electrical | |
| Tripping Characteristic | C |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Phase to Phase 440 V | |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| at 2000 m 5 kV | |
| at Sea Level 6.2 kV | |
| Input Voltage Type | AC |
| Rated Current (In) | 16 A |
| Rated Short-Circuit Capacity | 6 kA |
| (400 V AC) 6 kA | |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 10 W |
| at Rated Operating Conditions per Pole 2.5 W | |
| Overvoltage Category | III |
| Design | |
| Housing Material | Insulation Group II, RAL 7035 |
| Material Compliance | |
| RoHS Declaration | 9AKK108468A8161 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240710 |
| REACH Declaration | 9AKK108471A8275 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection | IP20 |
| Enclosure with Cover IP40 | |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles |
| with 55 °C / 90-96 % | |
| and 25 °C / 95-100 % | |
| Dimensions | |
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 70 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.5 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
| Ordering | |
| Package Level 1 Units | carton 1 piece |
| Package Level 1 Gross Weight | 0.51 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK108468A8161 |
| Installation | |
| Instructions and Manuals | 9AKK108468A7757 |
| Mounting Type | DIN-Rail |
| Mounting Position | any |
| External Classifications and Standards | |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers |
| Standards | IEC/EN 60898-1, IEC/EN 60947-2 |
