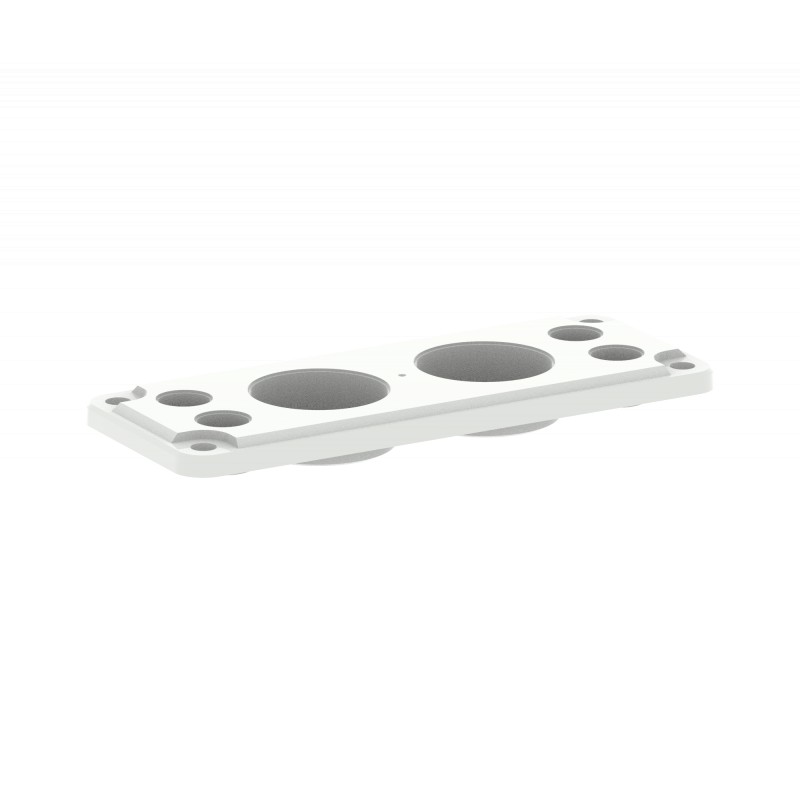

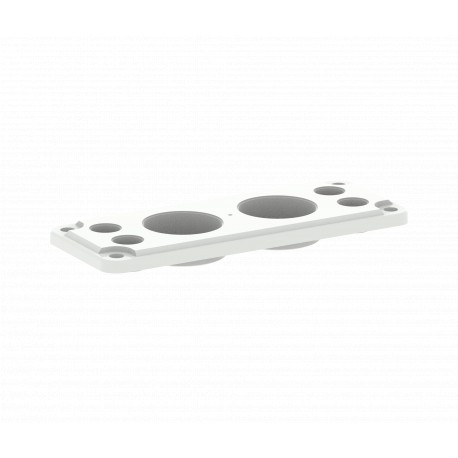

1SCA022715R9090 ABB PROFILE TYPE II YMF-MB10861SET
1SCA022715R9090
ABB
PROFILE TYPE II YMF-MB10861SET
TYPE II PROFILE YMF-MB10861SET
YMF-MB10861SET C-flange
Distribution boards > Gland plate for small distribution boards/switchgear cabinets
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | No Instructions and Manuals needed |
| Mechanical Drawings | YMF_MB10861SET.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 85 mm |
| Product Net Height | 216 mm |
| Product Net Depth / Length | 10 mm |
| Product Net Weight | 0.14 kg |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 10 mm |
| Package Level 1 Depth / Length | 85 mm |
| Package Level 1 Height | 216 mm |
| Package Level 1 Gross Weight | 0.15 kg |
| Package Level 1 EAN | 6418074052438 |
| Technical | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Type | YMF |
| Certificates and Declarations | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000211 - Gland plate for enclosure/cabinet |
| ETIM 10 | EC000211 - Gland plate for enclosure/cabinet |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5267 >> Safety Switch Accessories |
| eClass | V11.1 : 27142421 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 1414595 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Blind |
| Type (EF001139) | Straight |
| Width (EF000008) | 85 mm |
| Height (EF000040) | 216 mm |
| Surface protection (EF000139) | Powder coated |
| Pre-stamping (EF001039) | Yes |
| Thread type (EF001758) | None |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
| 1SCA022715R9090 1SCA022715R9090 EN_1SCA022715R9090.pdf | 108 Kbytes |
|
