ABBAutomation and Control enclosures2CPX010460R9999 ABB TZ107 closing flange

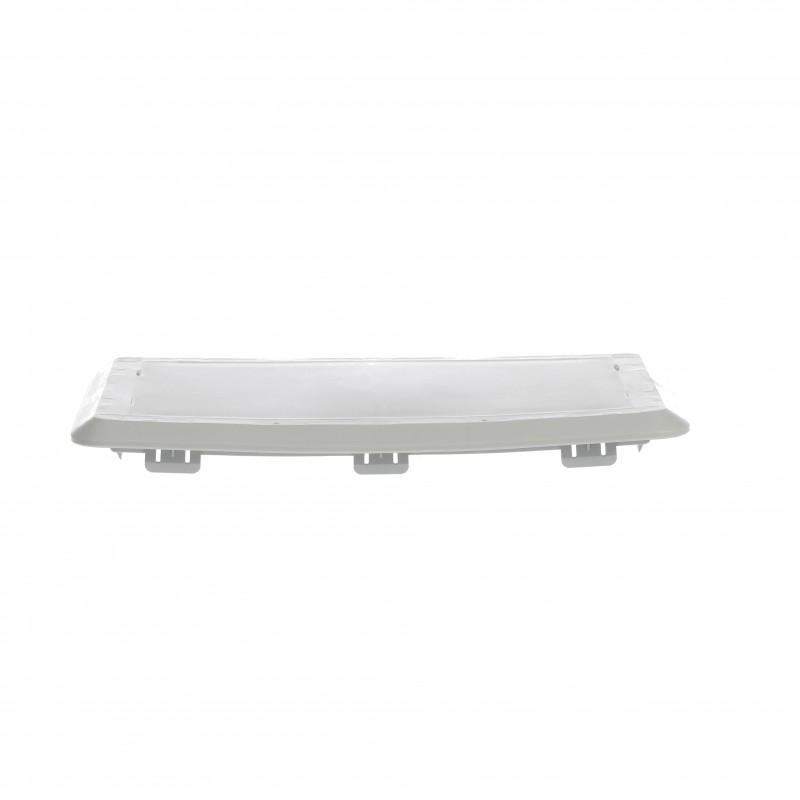

ABB 2CPX010460R9999 2CPX010460R9999 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

2CPX010460R9999 ABB TZ107 closing flange

Reference: 2CPX010460R9999

Manufacturer: ABB

Description:

TZ107 closing flange
TZ107 Plastic pass-through lid.E Energy,1ud.
Flange, 147 mm x 223 mm x 20 mm

Categories:

  • Distribution boards > Gland plate for small distribution boards/switchgear cabinets
  • ABB > Automation and Control enclosures

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 16,60 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical
Model NumberBlind
Number of Connection Holes0
Enclosure TypeFlange
Meter Type"
Product TypeStraight
Accessories AvailableNo
Number of Batteries0
Design
Surface FinishingUntreated
MaterialPlastic
Material Compliance
RoHS Declaration2CPC100021X0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date20240903
REACH Declaration2CPC100005X0201
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20240902
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE CategoryProduct Not in WEEE Scope
Dimensions
Product Net Width223 mm
Product Net Height147 mm
Product Net Depth / Length20 mm
Product Net Weight0.154 kg
Thickness3 mm
Engineering
EPLAN Data9AAC184273_EPLAN
Ordering
Package Level 1 Unitspack 1 piece
Package Level 1 Gross Weight0.17 kg
E-Number (Norway)2437598
Certificates and Declarations
Declaration of Conformity - CE2CPC100021X0201
Installation
Instructions and Manuals2CPC133967M5601
Popular Downloads
Data Sheet, Technical Information2CPC000001C0101
2CPC000002C0101
External Classifications and Standards
ETIM 9EC000211 - Gland plate for enclosure/cabinet
ETIM 10EC000211 - Gland plate for enclosure/cabinet
eClassV11.0 : 27142421
Object Classification CodeU

ETIM for 2CPX010460R9999 Distribution boards (EC000211)

Feature nameModel (EF000010)
Feature valueBlind
Feature nameType (EF001139)
Feature valueStraight
Feature nameWidth (EF000008)
Feature value223 mm
Feature nameHeight (EF000040)
Feature value147 mm
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameSurface protection (EF000139)
Feature valueUntreated
Feature namePre-stamping (EF001039)
Feature valueNo
Feature nameNumber of connector holes (EF005554)
Feature value0

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE ABB GENERAL ENCLOSURES 2024 EN
138 Mbytes
PDF CATALOGUE ABB IS2 ENCLOSURES 2024 EN
45 Mbytes
PDF CATALOGUE ABB IS2 ENCLOSURES EN
32 Mbytes
