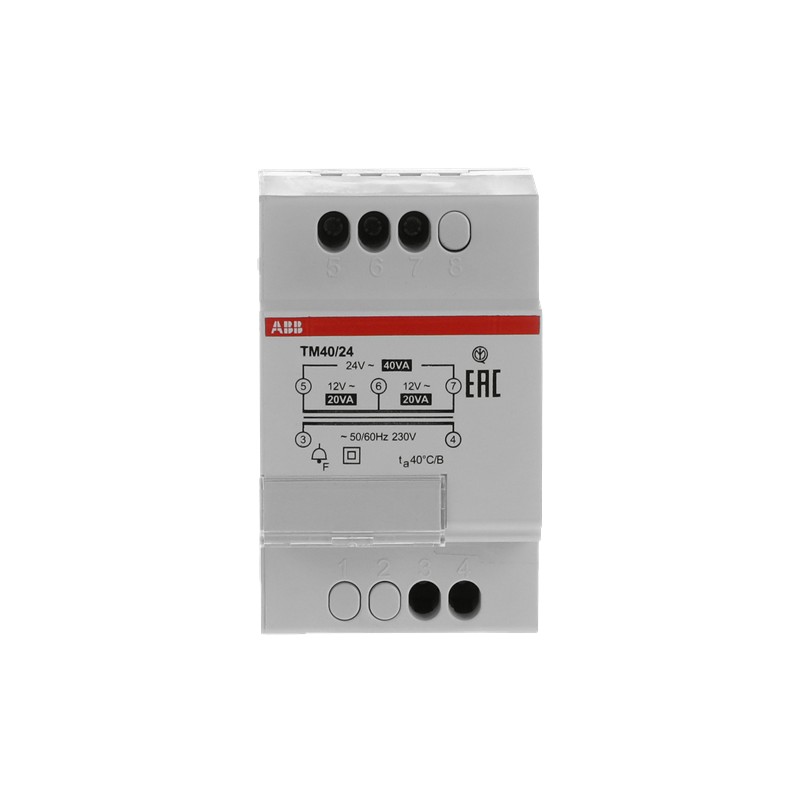

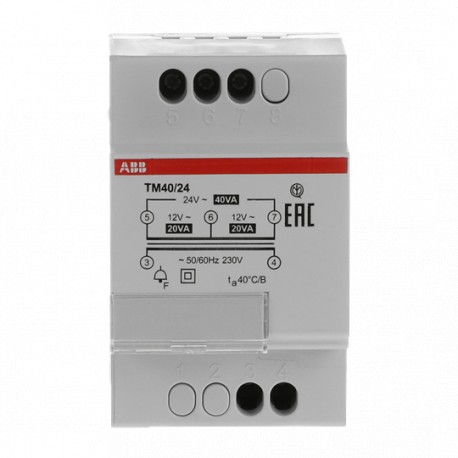

2CSM228785R0802 ABB Transf.tension rings TM40/24V
2CSM228785R0802
ABB
Transf.tension rings TM40/24V
Voltage transfer for TM40/24V doorbells
TM40/24 Fail safe bell transformer
Devices for distribution board-/surface mounting > Bell transformer
Other modular devices
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Application | Residential |
| Power Supply | 40 V·A |
| Insulation Class | B |
| Tightening Torque | 0.5 N·m |
| Transformer Type | Fail - Safe Bell Transformers |
| Options Provided | None |
| Remarks | Suitable for loads that require a discontinuous supply. Double insulation between primary and secondary windings |
| Connecting Capacity | 2.5 mm² |
| Wire Stripping Length | 9 mm |
| Electrical | |
| Primary Voltage | 230 V |
| Secondary Voltage | (5-6) & (6-7) 12 V AC |
| (5-7) 24 V AC | |
| Secondary Current | 1.66 A |
| Output Current Maximum (Iout) | 3.33 A |
| Rated Frequency (f) | 50/60 Hz |
| Power Loss | 3 W |
| Rated Output Power | 40 W |
| Technical UL/CSA | |
| Connecting Capacity UL/CSA | 14 AWG |
| Material Compliance | |
| RoHS Declaration | 2CSC446004K0201 |
| RoHS Information | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| RoHS Date | 25/06/2009 0.00.00 |
| REACH Declaration | 9AKK108467A9482 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20240429 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Environmental | |
| Ambient Air Temperature | Operation +10 ... +40 °C |
| Degree of Protection | IP20 |
| Dimensions | |
| Width in Number of Modular Spacings | 3 |
| Product Net Width | 52.5 mm |
| Product Net Height | 85 mm |
| Product Net Depth / Length | 65 mm |
| Product Net Weight | 450 g |
| Ordering | |
| Package Level 1 Units | box 4 piece |
| Package Level 1 Gross Weight | 1.8 kg |
| E-Number (Norway) | 5469057 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CSC446004K0201 |
| IMQ Certificate | 9AKK107992A6758 |
| Installation | |
| Wiring Diagram | 9AKK108467A7358 |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| External Classifications and Standards | |
| ETIM 9 | EC001547 - Bell transformer |
| ETIM 10 | EC001547 - Bell transformer |
| eClass | V11.0 : 27031190 |
| Object Classification Code | T |
| Standards | IEC/EN 61558-2-8 |
| Certification Agency | IMQ |
| Feature Name | Feature Value |
|---|---|
| Primary voltage (EF003775) | 230 V |
| Max. output power (EF001507) | 40 W |
| Max. output current (EF001315) | 3.33 A |
| Surface mounting (EF003681) | No |
| Flush-mounted installation (EF007517) | No |
| Modular version (EF001126) | Yes |
| Length (EF001438) | 65 mm |
| Width (EF000008) | 52.5 mm |
| Height (EF000040) | 85 mm |
| Width in number of modular spacings (EF002950) | 3 |
| Short-circuit protected (EF003696) | Yes |
| Temperature protection (EF003782) | No |
| With on/off switch (EF000488) | No |
