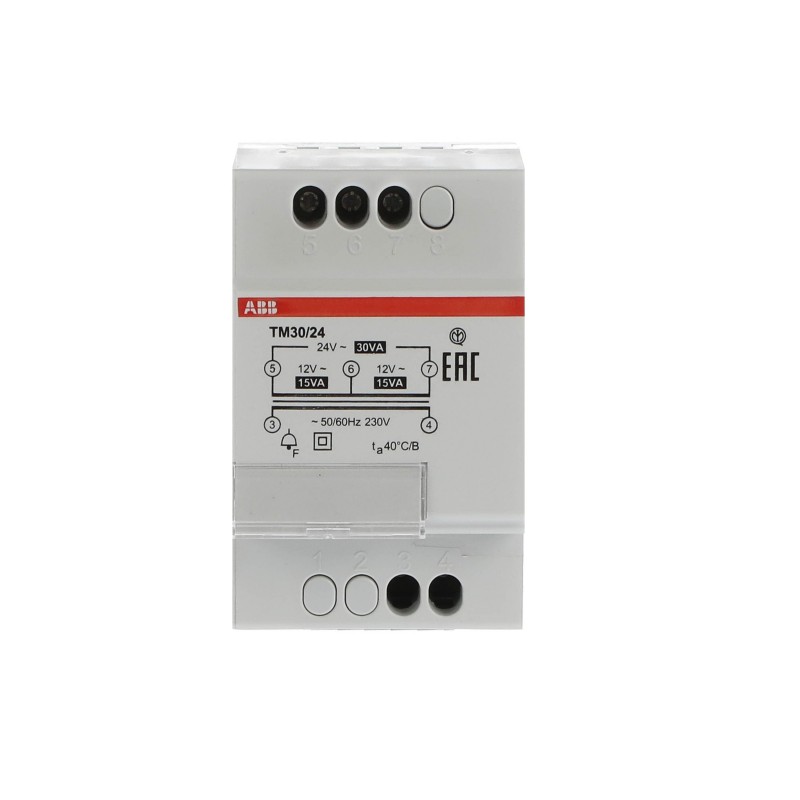

2CSM228765R0802 ABB Transf.tension rings TM30/24V

Reference: 2CSM228765R0802

Manufacturer: ABB

Description:

Transf.tension rings TM30/24V
Voltage transfer for TM30/24V doorbells
TM30/24 Fail safe bell transformer

Categories:

  • Devices for distribution board-/surface mounting > Bell transformer
  • ABB > Other modular devices

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 67,32 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical
ApplicationResidential
Power Supply30 V·A
Insulation ClassB
Tightening Torque0.5 N·m
Transformer TypeFail - Safe Bell Transformers
Options ProvidedNone
RemarksSuitable for loads that require a discontinuous supply. Double insulation between primary and secondary windings
Connecting Capacity2.5 mm²
Wire Stripping Length9 mm
Electrical
Primary Voltage230 V
Secondary Voltage(5-6) & (6-7) 12 V AC
(5-7) 24 V AC
Secondary Current1.25 A
Output Current Maximum (Iout)2.5 A
Rated Frequency (f)50/60 Hz
Power Loss3 W
Rated Output Power30 W
Technical UL/CSA
Connecting Capacity UL/CSA14 AWG
Material Compliance
RoHS Declaration2CSC446004K0201
RoHS InformationFollowing EU Directive 2002/95/EC August 18, 2005 and amendment
RoHS Date25/06/2009 0.00.00
REACH Declaration9AKK108467A9482
REACH InformationTrue - contains substances > 0.1 mass percentage
REACH Date20240429
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2BBusiness To Consumer
Environmental
Ambient Air TemperatureOperation +10 ... +40 °C
Degree of ProtectionIP20
Dimensions
Width in Number of Modular Spacings3
Product Net Width52.5 mm
Product Net Height85 mm
Product Net Depth / Length65 mm
Product Net Weight450 g
Ordering
Package Level 1 Unitsbox 4 piece
Package Level 1 Gross Weight1.8 kg
E-Number (Norway)5469055
Certificates and Declarations
Declaration of Conformity - CE2CSC446004K0201
IMQ Certificate9AKK107992A6760
Installation
Wiring Diagram9AKK108467A7356
Popular Downloads
Data Sheet, Technical Information9AKK107991A8329
External Classifications and Standards
ETIM 9EC001547 - Bell transformer
ETIM 10EC001547 - Bell transformer
eClassV11.0 : 27031190
Object Classification CodeT
StandardsIEC/EN 61558-2-8
Certification AgencyIMQ
