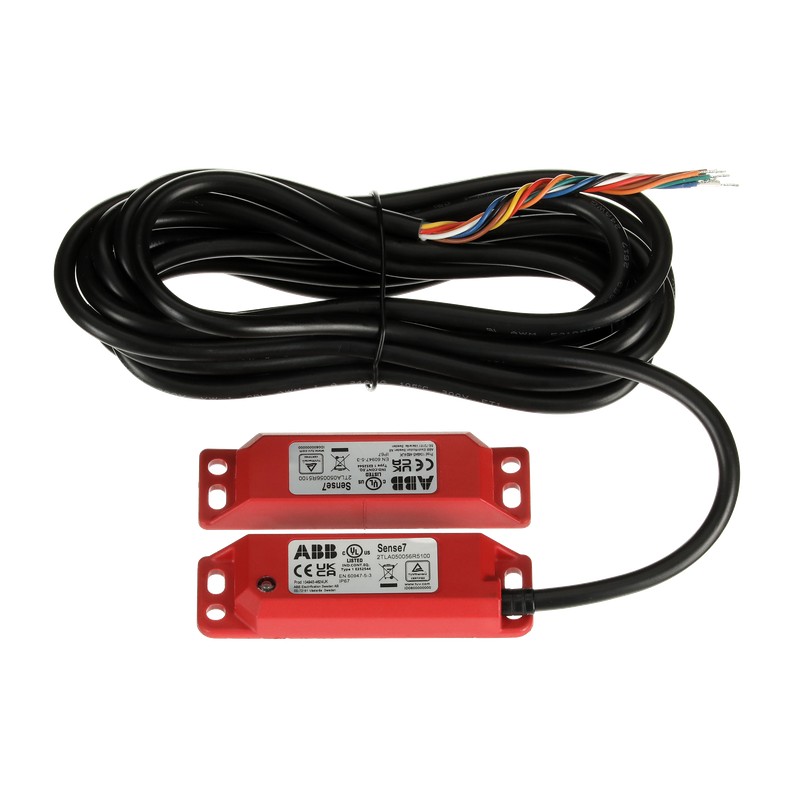

2TLA050056R5100 ABB Sense7, Cable 5m, 2NC/1NO, LED
2TLA050056R5100
ABB
Sense7, Cable 5m, 2NC/1NO, LED
Sense7, 5m Cable, 2NC/1NA, LED
Sense7 5M Sensor
Sensors > Magnetic proximity switch
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500500 |
| Product Main Type | Sense |
| Product Name | Sensor |
| Function | Safety magnetic switch for interlocking gates and hatches - Complete |
| Status Indicator | Yes |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010126D0201 |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC172249M0201 |
| Mounting Type | Not flat |
| Dimensions | |
| Product Net Depth / Length | 13 mm |
| Product Net Height | 88 mm |
| Product Net Width | 50 mm |
| Product Net Weight | 0.319 kg |
| Safety Information | |
| Certification Agency | cCSAus |
| Safety Category | 4 |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 3 |
| Technical | |
| Communication Interface | PNP |
| Connection Configuration | Cable, 5 m |
| Minimum Switching Capacity | 10 VDC 1mA |
| Number of Outputs | Failsafe (Transistor) 2 |
| Non-Failsafe, Undelayed Semiconductors 1 | |
| Operating Distance (Sn) | 5 mm |
| Probability of Dangerous Failure per Hour (PFDH) | 2.6 10-8 hour |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Technical UL/CSA | |
| Enclosure Type UL/CSA | 1 |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 50 °C |
| Degree of Protection | IP67 |
| IP69K | |
| Material | UL approved polyester |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cULus Certificate | 2TLC010041D0201 |
| Declaration of Conformity - CE | 2TLC010060D0201 |
| Declaration of Conformity - UKCA | 2TLC010184D0201 |
| TÜV Certificate | 2TLC172125D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 77 mm |
| Package Level 1 Depth / Length | 103 mm |
| Package Level 1 Height | 192 mm |
| Package Level 1 Gross Weight | 375 g |
| Package Level 1 EAN | 7350024466690 |
| External Classifications and Standards | |
| eClass | V11.0 : 27272402 |
| ETIM 7 | EC002544 - Magnetic proximity switch |
| ETIM 8 | EC002544 - Magnetic proximity switch |
| ETIM 9 | EC002544 - Magnetic proximity switch |
| IDEA Granular Category Code (IGCC) | 6147 >> Non contact sensors |
| UNSPSC | 41111916 |
| Object Classification Code | B |
| E-Number (Finland) | 2307343 |
| E-Number (Sweden) | 3860156 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SAFETY EN.pdf | 42 Mbytes |
|
