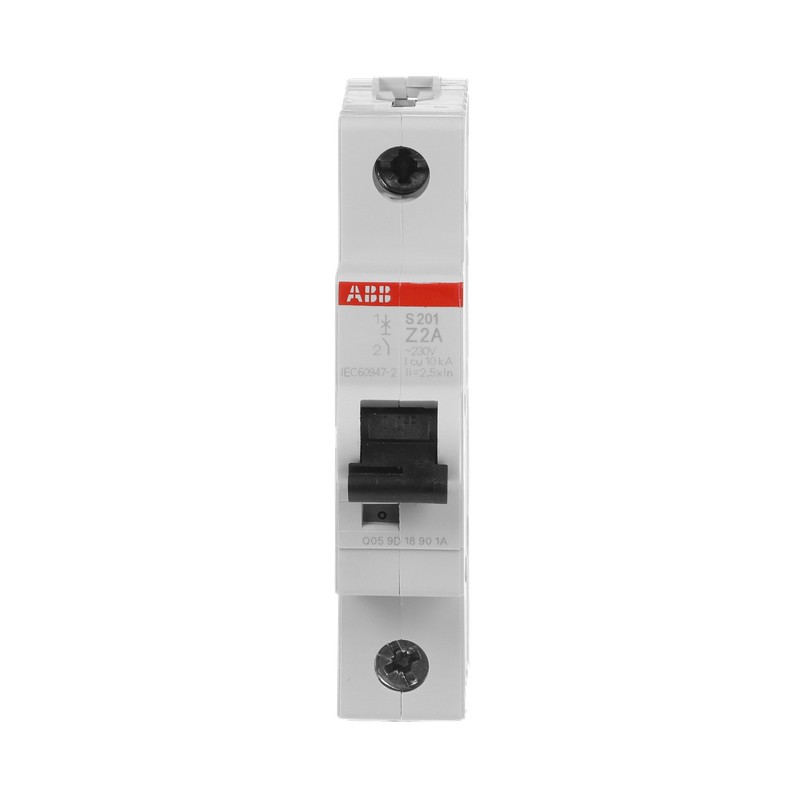

S201-Z2 2CDS251001R0278 ABB System pro M compact S200 miniature circuit breakers are current limiting. They ..
S201-Z2
2CDS251001R0278
ABB
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Miniature Circuit Breaker - S200 - 1P - 2 A - Z - (AC) 6 kA
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108469A3796 |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 80.7 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill |
| Extended Product Lifetime | Product Durability |
| Offered with Takeback Services | Take Back for Recycling |
| End Of Life Disassembling Instructions | 9AKK108468A3132 |
| Environmental Product Declaration - EPD | 9AKK108467A7832 |
| Technical | |
| Dielectric Test Voltage | 50 / 60 Hz - 1 min 2 kV |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (133 V AC) 20 kA |
| (230 V AC) 10 kA | |
| (24 V DC) 20 kA | |
| (60 V DC) 10 kA | |
| (230 V) 10 kA | |
| (400 V) 10 kA | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (133 V AC) 15 kA |
| (230 V AC) 7.5 kA | |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Energy Limiting Class | 3 |
| Electrical Endurance | 20000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Protected Poles | 1 |
| Number of Poles | 1P |
| Tightening Torque | 2.8 N·m |
| Actuator Type | Toggle |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10/10 mm² |
| Flexible with Ferrule 0.75 ... 25 mm² | |
| Flexible 0.75 ... 25 mm² | |
| Rigid 0.75 ... 35 mm² | |
| Rigid 0.75 ... 35 mm² | |
| Stranded 0.75 ... 35 mm² | |
| Installation Size | acc. to DIN 43880 1 |
| Wire Stripping Length | 12.5 mm |
| Terminal Type | Screw Terminals |
| Electrical | |
| Tripping Characteristic | Z |
| Rated Operational Voltage | acc. to IEC 60947-2 440 V AC |
| Operational Voltage | Maximum (Incl. Tolerance) 253 V AC |
| Maximum (Incl. Tolerance) 72 V DC | |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 440 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| at 2000 m 5 kV | |
| at Sea Level 6.2 kV | |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 2 A |
| Rated Short-Circuit Capacity | (AC) 6 kA |
| (DC) 6 kA | |
| (230 V AC) 6 kA | |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 10 kA |
| (400 V) 10 kA | |
| Frequency (f) | 50 Hz |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 2.5 W |
| at Rated Operating Conditions per Pole 2.5 W | |
| Overvoltage Category | III |
| I²t Characteristic | 9AKK107992A5104 |
| Design | |
| Housing Material | Insulation Group II, RAL 7035 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 60 V DC |
| 480Y / 277 V AC | |
| Interrupting Rating acc. to UL1077 | (277 V AC) 6 kA |
| (60 V DC) 10 kA | |
| (120 V) 10 kA | |
| Connecting Capacity UL/CSA | Busbar 18-8 AWG |
| Conductor 18-4 AWG | |
| Tightening Torque UL/CSA | 18 in·lb |
| Material Compliance | |
| RoHS Declaration | 2CDK403001D0607 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20240228 |
| REACH Declaration | 9AKK107492A1906 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251028 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| SCIP | e6800e55-46b1-49a3-881b-0f66d0e903ad Germany |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +55 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection | IP20 |
| IP40 | |
| Enclosure with Cover IP40 | |
| Pollution Degree | 3 |
| Environmental Conditions | 28 cycles |
| with 55 °C / 90-96 % | |
| and 25 °C / 95-100 % | |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 5g 5 ... 150 ... 5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| Dimensions | |
| Width in Number of Modular Spacings | 1.0 |
| Product Net Width | 17.5 mm |
| Product Net Height | 88 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.112 kg |
| Pole Net Weight | 0.125 kg |
| Built-In Depth (t2) | 69 mm |
| Dimension Diagram | 2CDC022007F0010 |
| Engineering | |
| EPLAN Data | 9AAC204436_EPLAN |
| Ordering | |
| Package Level 1 Units | carton 10 piece |
| Package Level 1 Gross Weight | 1.16 kg |
| E-Number (Finland) | 3210705 |
| E-Number (Norway) | 1665055 |
| E-Number (Sweden) | 2100745 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK403001D0607 |
| Declaration of Conformity - UKCA | 9AKK108467A5053 |
| Installation | |
| Instructions and Manuals | 2CDS207104P0002 |
| Mounting Type | DIN-Rail |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Mounting Position | any |
| Popular Downloads | |
| Data Sheet, Technical Information | 9AKK107991A8329 |
| I²t Characteristic | 9AKK107992A5104 |
| External Classifications and Standards | |
| ETIM 9 | EC000042 - Miniature circuit breaker (MCB) |
| ETIM 10 | EC000042 - Miniature circuit breaker (MCB) |
| UNSPSC | 39121603 |
| eClass | V11.0 : 27141901 |
| IDEA Granular Category Code (IGCC) | 4897 >> Miniature circuit breakers |
| Object Classification Code | F |
| Standards | IEC/EN 60898-1 |
| IEC/EN 60947-2 | |
| UL 1077 | |
| Certification Agency | EN |
| IEC | |
| UL | |
| Standardization Body | EN |
| IEC | |
