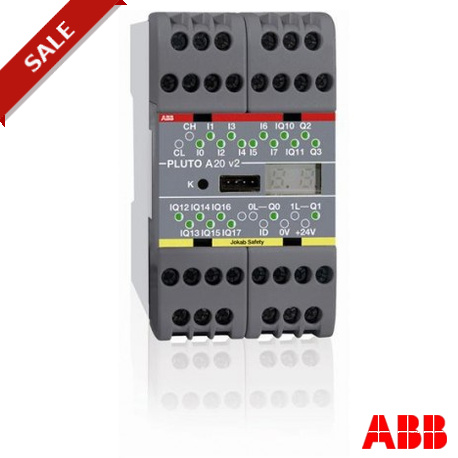

2TLA020070R4500 ABB Pluto A20 v2
2TLA020070R4500
ABB
Pluto A20 v2
Pluto A20 v2 PLC-Segur.8+8+2+2 I/O Corri
Pluto A20 v2 Programmable safety controller
PLC's > PLC CPU-module
Fences and rolling doors > Safety system - Pluto
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536411090 |
| Product Main Type | Pluto |
| Product Name | Programmable safety controller |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010035L0201 |
| Data Sheet, Technical Information (Part 2) | 2TLC172222D0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Marketing Video | 2TLC010032N0201 |
| 2TLC010018N0201 | |
| Installation | |
| Instructions and Manuals | 2TLC172001M0210 |
| Wiring Diagram | 2TLC010035T0001 |
| Mounting Type | DIN-Rail |
| Dimensions | |
| Product Net Depth / Length | 120 mm |
| Product Net Height | 84 mm |
| Product Net Width | 45 mm |
| Product Net Weight | 0.39 kg |
| Dimension Diagram | 2TLC010007U0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Technical | |
| Diagnostic Coverage | High |
| Number of Inputs | Failsafe 16 |
| Number of Outputs | Failsafe (Transistor) 2 |
| Failsafe (Relay) 2 | |
| Non-Failsafe 8 | |
| Protocol Type | MODBUS ASCII, Pluto Safety Bus, StatusBus |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Supply Voltage | 24 V DC |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2TLC172011D0202 |
| Declaration of Conformity - UKCA | 2TLC010187D0201 |
| TÜV Certificate | 2TLC172005D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 90 mm |
| Package Level 1 Depth / Length | 130 mm |
| Package Level 1 Height | 57 mm |
| Package Level 1 Gross Weight | 0.42 kg |
| Package Level 1 EAN | 7320500410530 |
| External Classifications and Standards | |
| eClass | V11.0 : 27242207 |
| ETIM 7 | EC000236 - PLC CPU-module |
| ETIM 8 | EC000236 - PLC CPU-module |
| ETIM 9 | EC000236 - PLC CPU-module |
| IDEA Granular Category Code (IGCC) | 3561 >> Programmable Logic Controller Module |
| UNSPSC | 32151705 |
| Object Classification Code | K |
| E-Number (Finland) | 2712232 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SAFETY EN.pdf | 42 Mbytes |
|
| Pluto A20 v2 - ABB - Pluto A20 - 2TLA020070R4500 | 85 Kbytes |
|
| Pluto A20 2TLA020070R4500 ABB Pluto A20 v2 | 71 Kbytes |
|
