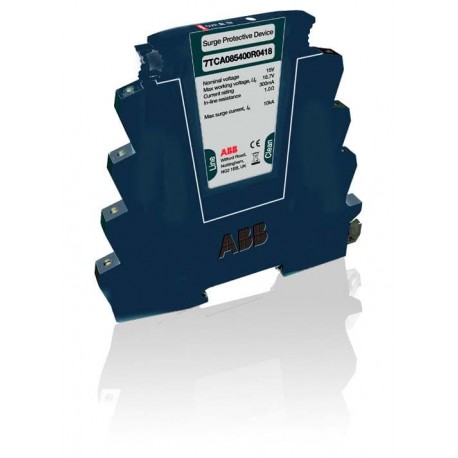

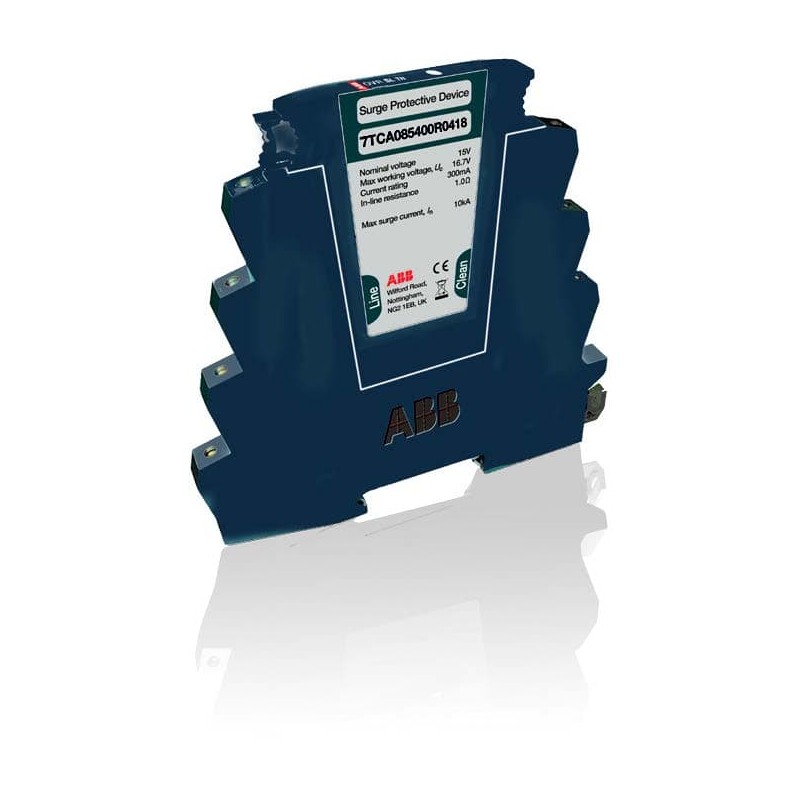

OVR SLTN 7TCA085400R0323 - ABB - OVR SLTN Surge Protective Device
OVR SLTN
7TCA085400R0323
ABB
OVR SLTN Surge Protective Device
Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
Other modular devices
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
More info
▲OVR SLTN SLIM LINE DATA SPD FOR TWISTED PAIR TELEPHONE LINES
Ordering
- EAN:
- 05415022374452
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 8536308000
Dimensions
- Product Net Width:
- 106.5mm
- Product Net Height:
- 104.6mm
- Product Net Depth:
- 7mm
- Product Net Weight:
- 0.08kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 EAN:
- 05415022374452
Environmental
- Ambient Air Temperature:
- Operation -40 ... +80 °C
Additional Information
- Connection Type:
- Screw clamp
- Discharge Current:
- I (max, 8 / 20 µs) 10 kA
- Maximum Continuous Operating Voltage (Uc):
- 296 V
- Number of Protected Poles:
- 3
- Product Main Type:
- Data SPD
- Product Name:
- Surge Protective Devices
- Rated Current (In):
- 750 mA
- Rated Frequency (f):
- 20 MHz
- Standards:
- IEC 61643-21
- Suitable For:
- To protect systems against transient overvoltages or surges from lightning and electrical switching events
- Voltage Protection Level ( Up):
- 298 V
- Wire Stripping Length:
- 9.5 mm
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 9AKK106713A8157
- Declaration of Conformity - CE:
- 9AKK106713A8383
- Instructions and Manuals:
- 9AKK106713A8726
Classifications
- ETIM 4:
- EC000941 - Surge protection device for power supply systems
- ETIM 5:
- EC000941 - Surge protection device for power supply systems
- ETIM 6:
- EC000943 - Surge protection device for data networks/MCR-technology
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB COMMAND SIGNALING.pdf | 4 Mbytes |
|
| PDF CATALOG ABB CONTROL AUTOMATION EN.pdf | 1 Mbytes |
|
| PDF CATALOG ABB ENERGY EFFICIENCY EN.pdf | 4 Mbytes |
|
| PDF CATALOG ABB PROTECTION SAFETY EN.pdf | 10 Mbytes |
|
