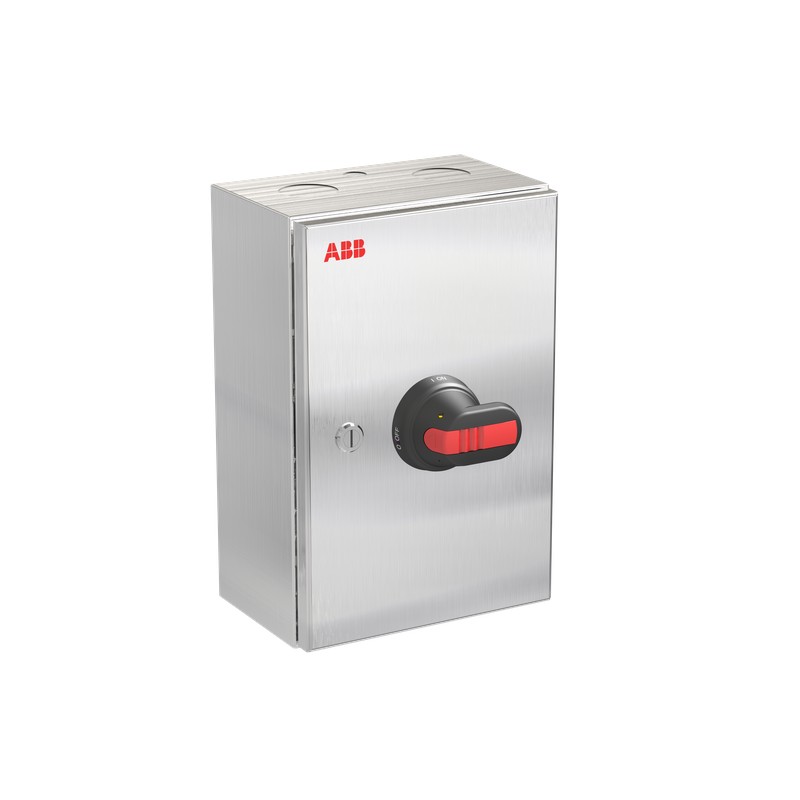

OTR75T3B 1SCA022567R1280 - ABB - OTR75T3B Safety switch
1SCA022567R1280
ABB
OTR75T3B Safety switch
Low-voltage industrial components > Switch disconnector
Manual Switches
* Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲Safety switch, 3-p. 400V AC23 80A, 37kW. Stainless steel enclosure. IP65. Black Pistol handle. Interlocked cover. Defeatable interlocking.
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC340006C0201
Dimensions
- Product Net Width:
- 200mm
- Product Net Height:
- 300mm
- Product Net Depth:
- 135mm
- Product Net Weight:
- 3.2kg
Technical
- Rated Operational Current AC-22A (Ie):
- (380 ... 415 V) 100 A
(690 V) 100 A
- Rated Operational Current AC-23A (Ie):
- (380 ... 415 V) 80 A
(690 V) 40 A
- Rated Operational Power AC-23A (Pe):
- (380 ... 415 V) 37 kW
(690 V) 37 kW
- Conventional Thermal Current (Ithe):
- Fully Enclosed 115 A
- Rated Insulation Voltage (Ui):
- acc. to IEC/EN 60664-1 750 V
- Rated Operational Voltage:
- Main Circuit 750 V
- Power Loss:
- at Rated Operating Conditions per Pole 4 W
- Pollution Degree:
- 3
- Handle Color:
- Black
- Handle Type:
- Pistol handle
- Position of Line Terminals:
- Top In - Bottom Out
- Number of Poles:
- 3
- Cable Cross-Section:
- 70 mm²
- Cable Entry Position:
- Up/Down
- Cable Outlets Per Side:
- B-flange / B-flange
- Degree of Protection:
- acc. to IEC 60529 IP65
- Enclosure Material:
- Stainless steel
- Maximum Mounted Auxiliary Contacts:
- 2 NO, 2 NC
- Mounted Auxiliary Contacts:
- 1 NO, 0 NC
- Position of PE Terminals:
- Top In - Bottom Out
Environmental
- RoHS Status:
- Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC340006D2704
- Environmental Information:
- 1SCC340034D0202
- Instructions and Manuals:
- 1SCC340006M0013
- RoHS Information:
- 1SCC340034D0202
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 191 mm
- Package Level 1 Length:
- 212 mm
- Package Level 1 Height:
- 313 mm
- Package Level 1 Gross Weight:
- 3.4 kg
- Package Level 1 EAN:
- 6417019182582
Classifications
- Object Classification Code:
- Q
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
Datasheet - PDF
