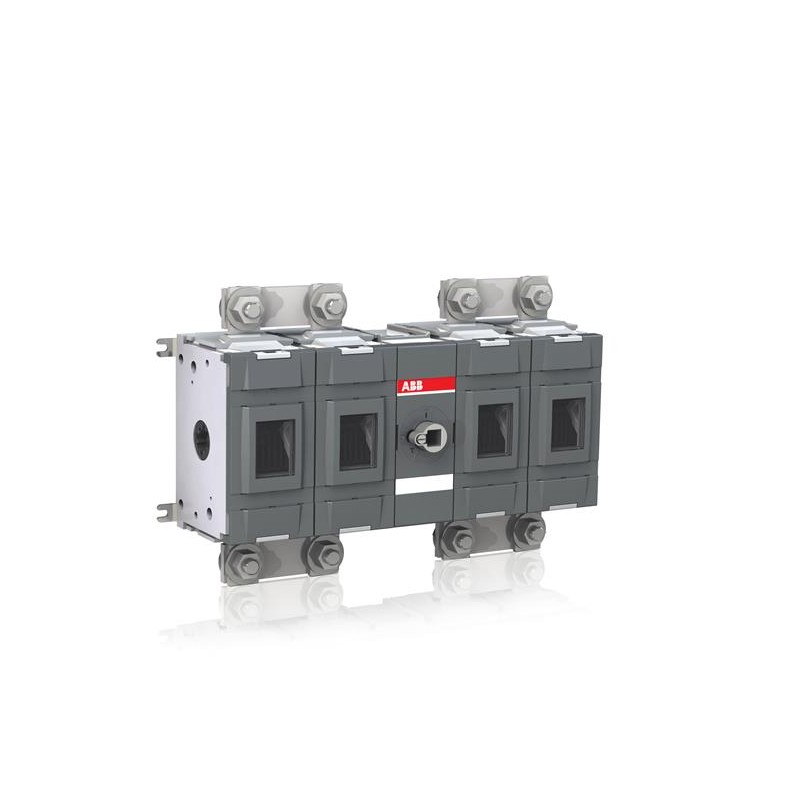

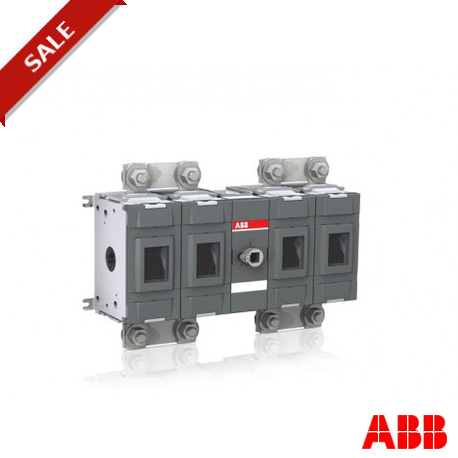

OTDC800EPP22 1SCA137210R1001 ABB OTDC800EPP22 DC Switch-disconnector
OTDC800EPP22
1SCA137210R1001
ABB
OTDC800EPP22 DC Switch-disconnector
DC OTDC800EPP22 disconnect switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲OTDC800EPP22 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 1000 VDC 800 A
Ordering
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85365080
Popular Downloads
- Data Sheet, Technical Information:
- 1SCC301021C0201
Dimensions
- Product Net Width:
- 335mm
- Product Net Height:
- 227mm
- Product Net Depth:
- 105mm
- Product Net Weight:
- 7.3kg
Technical
- Rated Operational Current DC-21B (Ie):
- (1000 V) 800 A
- Conventional Thermal Current (Ithe):
- Fully Enclosed 800 A
- Rated Impulse Withstand Voltage (Uimp):
- 12 kV
- Rated Insulation Voltage (Ui):
- 1500 V
- Rated Operational Voltage:
- 1000 V
- Rated Short-time Withstand Current (Icw):
- for 1 s 10 kiloampere rms
- Pollution Degree:
- 3
- Handle Type:
- Handle and shaft not included
- Switches Operating Mechanism:
- Mechanism Between the Poles
22 (Between the Poles)
- Position of Line Terminals:
- Top In - Bottom Out
- Operating Mode:
- Front operated
- Standards:
- IEC
- Special Functions:
- No
- Mounting Type:
- Base mounting
- Number of Circuits:
- 1
- Number of Poles:
- 2
- Terminal Type:
- Lug terminals
Certificates and Declarations (Document Number)
- Declaration of Conformity - CE:
- 1SCC301009K0201
- Instructions and Manuals:
- 1SCC301085M0203
Container Information
- Package Level 1 Width:
- 263 mm
- Package Level 1 Length:
- 432 mm
- Package Level 1 Height:
- 143 mm
- Package Level 1 Gross Weight:
- 7,8 kg
- Package Level 1 EAN:
- 6417019656991
Classifications
- ETIM 5:
- EC000216 - Switch disconnector
- ETIM 6:
- EC000216 - Switch disconnector
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
