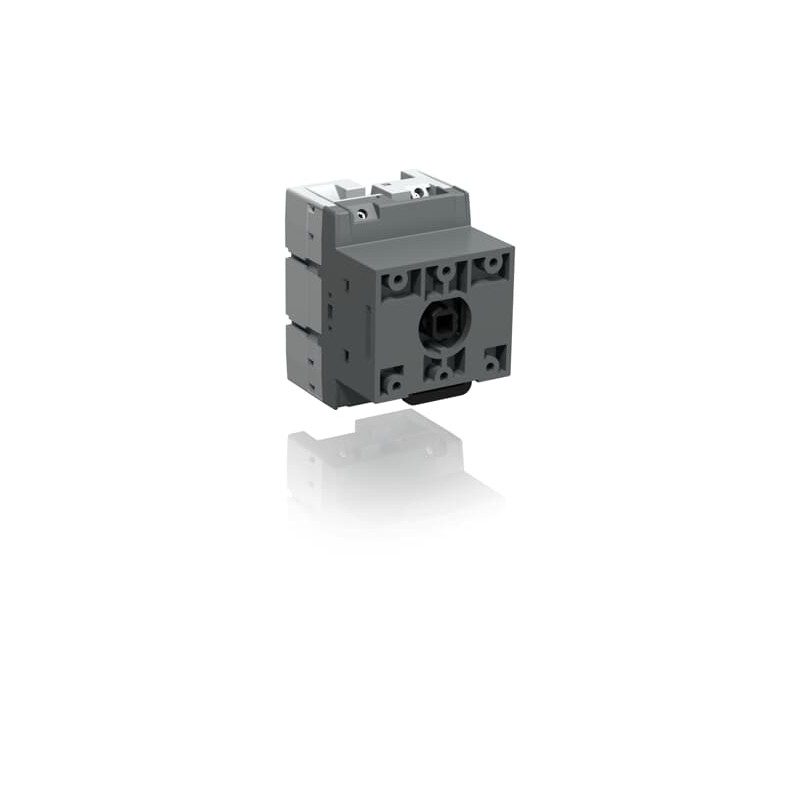

1SCA123845R1001 ABB Switch disconnector DC OTDC32FT2
1SCA123845R1001
ABB
Switch disconnector DC OTDC32FT2
DC OTDC32FT2 disconnect switch
OTDC32FT2 DC Switch-disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Information | NA |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301079M0206 |
| Mechanical Drawings | OTDC16-32FT2_palikkamalli.igs |
| 1SCC307023F0002 | |
| 1SCC307024F0002 | |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | NA |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Estonia |
| Dimensions | |
| Product Frame Size | XS |
| Product Net Width | 52.5 mm |
| 2.1 in | |
| Product Net Height | 69 mm |
| 2.7 in | |
| Product Net Depth / Length | 64 mm |
| 2.5 in | |
| Product Net Weight | 0.1 kg |
| 0.3 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 90 mm |
| 3.5 in | |
| Package Level 1 Depth / Length | 54 mm |
| 2.1 in | |
| Package Level 1 Height | 90 mm |
| 3.5 in | |
| Package Level 1 Gross Weight | 0.2 kg |
| 0.4 lb | |
| Package Level 1 EAN | 6417019545646 |
| Technical | |
| Cable Cross-Section | 2.5 ... 16 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 45 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 45 A |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft not included |
| Mounting Type | Door mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 0.4 … 0.8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 0.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current DC-21B (Ie) | (660 V) 32 A |
| (1000 V) 20 A | |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 0.8 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 0.8 kA |
| for 1 s 0.8 kA | |
| Recommended Screw Driver | Main Circuit Torx |
| Shaft Diameter | 6 mm |
| 0.24 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Wire Stripping Length | Main Circuit 72 … 11 mm |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 72 … 11 mm |
| Recommended Screw Driver | Main Circuit Torx |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Certificates and Declarations | |
| CCC Certificate | CQC2012010302579872 |
| Declaration of Conformity - CE | 1SCC301192D2704 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601396 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 45 A |
| Number of poles (EF001391) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
