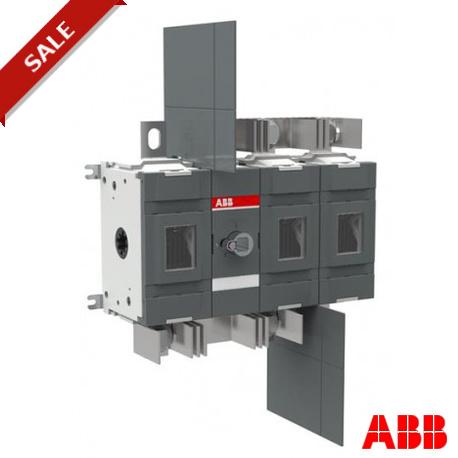

OTDC320USV12 1SCA140835R1001 ABB OTDC320USV12 PV Disconnect Switch

Reference: OTDC320USV12

Code: 1SCA140835R1001

Manufacturer: ABB

Description:

OTDC320USV12 PV Disconnect Switch
DC disconnector switch OTDC320USV12

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

OTDC320USV12 PV Disconnect Switch, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, US single-wire break, UL 1000 VDC 320 A, UL 1500 VDC 320 A, IEC 1000 VDC 400 A

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC301021C0201

Dimensions

  • Product Net Width:
    266mm
  • Product Net Height:
    227mm
  • Product Net Depth:
    105mm
  • Product Net Weight:
    5,6kg

Technical

  • Rated Operational Current DC-21B (Ie):
    (1000 V) 400 A
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 400 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 400 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1500 V
  • Rated Operational Voltage:
    1500 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 10 kiloampere rms
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft not included
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    12 (Between the Poles)
  • Operating Mode:
    Front Operated
  • Standards:
    IEC&UL
  • Special Functions:
    US single-wire break
  • Mounting Type:
    Base mounting
  • Number of Circuits:
    1
  • Number of Poles:
    3
  • Terminal Type:
    Lug terminals

Technical UL/CSA

  • Ampere Rating UL/CSA:
    1000 VDC 320 A
    1500 VDC 320 A

Container Information

  • Package Level 1 Gross Weight:
    6.1 kg
  • Package Level 1 EAN:
    6417019686127

Classifications

  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector

DATASHEET - PDF
