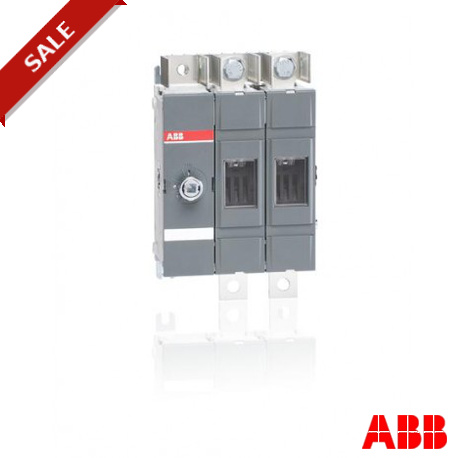

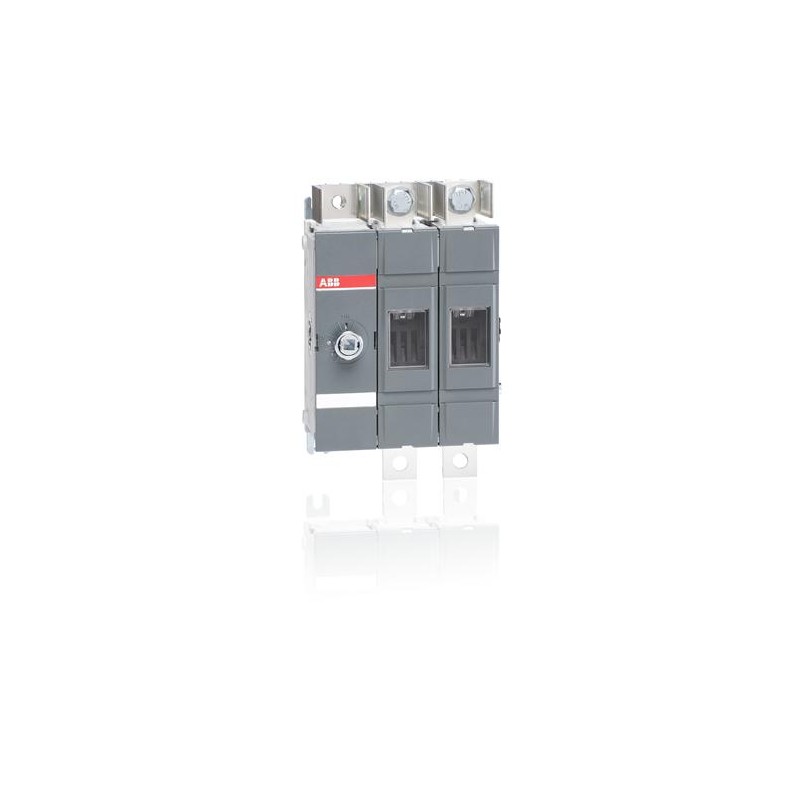

OTDC100USV22 1SCA149095R1001 ABB OTDC100USV22 PV Disconnect Switch

Reference: OTDC100USV22

Code: 1SCA149095R1001

Manufacturer: ABB

Description:

OTDC100USV22 PV Disconnect Switch
DC OTDC100USV22 disconnect switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

OTDC100USV22 PV Disconnect Switch, Handle and shaft not included, Base mounting, IEC&UL 100 A 1000V and 100 A 1500V

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC301021C0201

Dimensions

  • Product Net Width:
    185.4mm
  • Product Net Height:
    210mm
  • Product Net Depth:
    90.5mm
  • Product Net Weight:
    2,35kg

Technical

  • Rated Operational Current DC-21B (Ie):
    (1000 V) 100 A
    (1500 V) 100 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 100 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1500 V
  • Rated Operational Voltage:
    1500 V
  • Power Loss:
    at Rated Operating Conditions per Pole 2 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft not included
  • Switches Operating Mechanism:
    22 (Between the Poles)
  • Operating Mode:
    Front operated
  • Standards:
    IEC&UL
  • Special Functions:
    1500 V pre-connected, US single-wire break
  • Mounting Type:
    Base mounting
  • Number of Circuits:
    1
  • Number of Poles:
    4
  • Terminal Type:
    Lug terminals

Technical UL/CSA

  • Ampere Rating UL/CSA:
    100 A

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC301201D2703
  • Instructions and Manuals:
    1SCA144401R1001

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    240 mm
  • Package Level 1 Length:
    270 mm
  • Package Level 1 Height:
    120 mm
  • Package Level 1 Gross Weight:
    2.65 kg
  • Package Level 1 EAN:
    6417019787015

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
